1500g Industrial Vacuum Planetary Centrifugal Mixer with CE Certification TMV-1500T
This professional vacuum planetary centrifugal mixer delivers reliable defoaming performance, ideal for high-viscosity and foam-prone material processing with stable operation.
- Overview
- Recommended Products
This professional vacuum planetary centrifugal mixer delivers reliable defoaming performance, ideal for high-viscosity and foam-prone material processing with stable operation.
Product Parameters
Model |
TMV-1500T |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
1500ml, 750g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Fixed Revolution-to-Rotation Speed Ratio |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 220V, 50/60Hz, 1.8kW |
Overall Dimensions (mm) |
L730×W730×H910 |
Main Unit Weight |
195 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product advantages
Vacuum defoaming function, delivering thorough bubble removal and uniform material dispersion.
No stirring blade design, maintaining raw material purity and enabling quick cleaning.

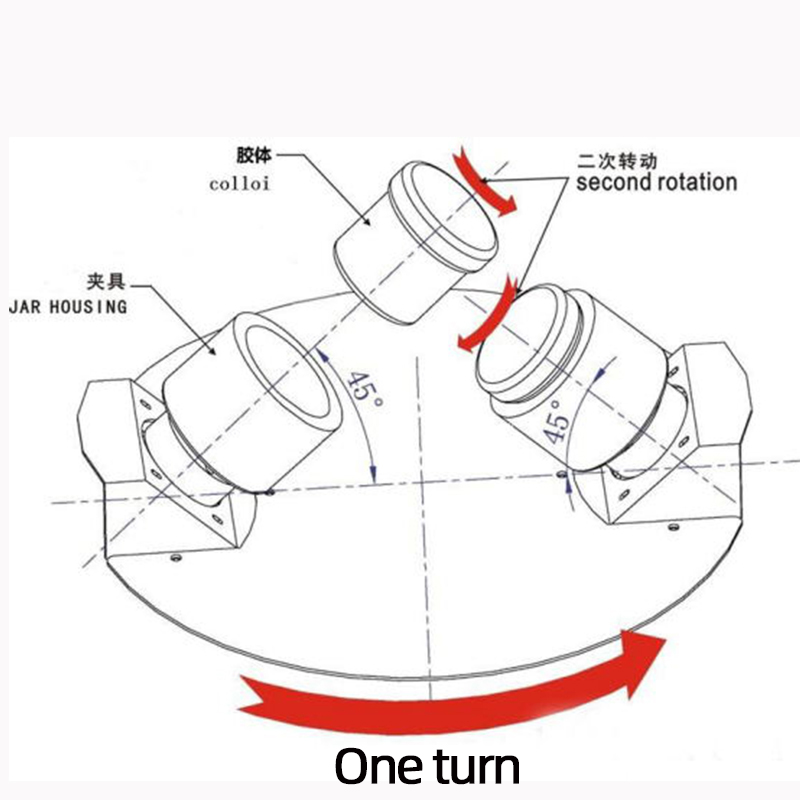

Compound dual planetary centrifugal action, performing efficient mixing with zero dead angles.
Solid durable structure, supporting stable long-term operation and low fault ratio.
Stepless adjustable parameters, fitting high-viscosity and bubble-prone industrial materials.
Full capacity selections, meeting research and small-to-medium batch manufacturing demands.
Low operating noise and user-friendly panel, simple to operate with minimal maintenance.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: Will this vacuum planetary centrifugal mixer stop mixing when performing defoaming?
A: No. The vacuum defoaming and material mixing are carried out simultaneously. The vacuum system runs synchronously with the mixing mechanism to ensure continuous and efficient bubble removal.
Q: How does this blade-less vacuum mixer achieve both homogenization and defoaming?
A: Adopting a non-contact blade-free design, it combines dual planetary centrifugal movement and vacuum negative pressure. It realizes full mixing and complete defoaming without abrading or damaging materials.
Q: What kinds of raw materials need this vacuum mixing equipment?
A: It is specially developed for materials with strict defoaming demands, such as electronic slurry, structural adhesives, epoxy resin, ceramic slurry and polymer composites, serving R&D and small batch production.
