300g Standard Planetary Centrifugal Mixer for General Material Mixing TM-310TT
Adopting a blade-less non-vacuum structure, this dual-cup planetary centrifugal mixer supports a 300g processing capacity. It enables simultaneous dualcup mixing with stable operation, perfect for smallbatch material testing and trial production.
- Overview
- Recommended Products
Adopting a blade-less non-vacuum structure, this dual-cup planetary centrifugal mixer supports a 300g processing capacity. It enables simultaneous dualcup mixing with stable operation, perfect for small-batch material testing and trial production.
Product Parameters
Model |
TM-310TT |
Product Name |
Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
300ml, 150g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-2） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Power Supply |
AC 220V, 50/60Hz, 1.5kW |
Overall Dimensions (mm) |
L590×W570×H580 |
Main Unit Weight |
100 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Emergency Stop Switch, Door Lock Sensor |
Product Advantages
No stirring blade design, avoids material pollution and enables easy maintenance.
Compound dual planetary centrifugal action, provides high-efficiency mixing with zero dead angles.
Streamlined non-vacuum construction, offers reliable performance and low fault ratio.
Various capacity selections, fit for both lab research and industrial production scenes.
Stepless adjustable operating parameters, supports broad material applicability.
Quiet operation and user-friendly control, quick to learn and operate.
Strong adaptability to assorted material cups and containers.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: Is this planetary centrifugal mixer designed with vacuum capability?
A: No. It is a standard non-vacuum mixer, made for traditional material mixing applications where vacuum defoaming is unnecessary. It boasts a simpler construction and more competitive pricing.
Q: Since there are no mixing blades in this machine, how does it deliver even material mixing?

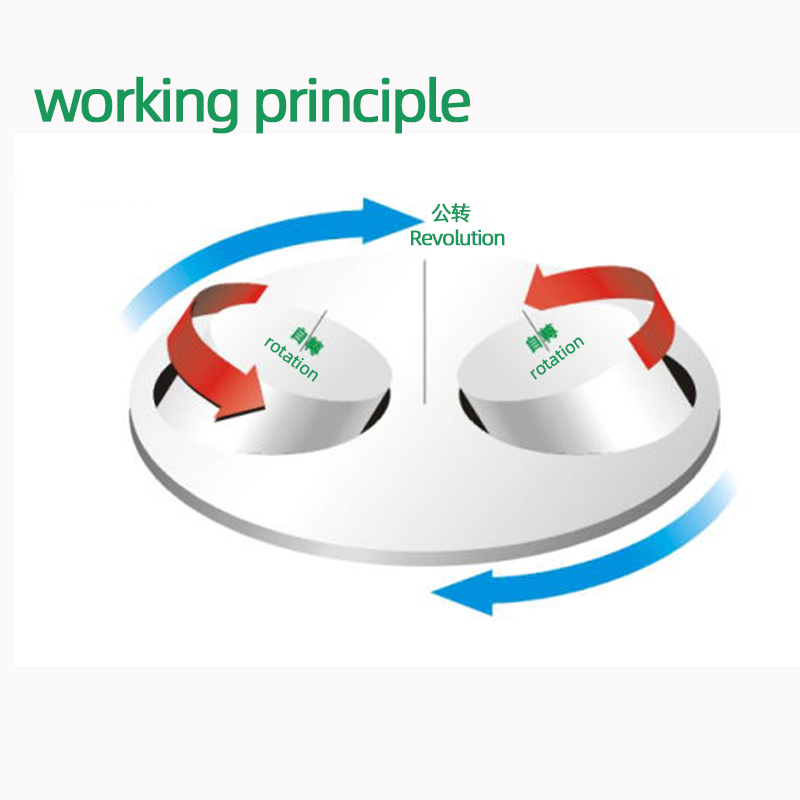

A: This mixer is totally blade-free, and it runs on a dual planetary centrifugal operation mechanism. It makes material containers carry out multi-angle rotation, achieving full homogenization and dispersion solely through centrifugal force.
Q: Which materials are compatible with this non-vacuum planetary centrifugal mixer?
A: It is intended for general materials without rigid vacuum defoaming needs, including color pigments, inks, surface coatings, sealants, cosmetics, various pastes and ordinary chemical raw materials. Our model range supports laboratory development, small-batch testing and medium-volume industrial production.
