4L Non-Bubble Vacuum Planetary Centrifugal Mixer for Electronic Slurry Preparation TMV-4000T
This compact vacuum planetary centrifugal mixer integrates vacuum defoaming and high-efficiency blending, supporting small-batch testing and medium-scale production scenarios.
- Overview
- Recommended Products
This compact vacuum planetary centrifugal mixer integrates vacuum defoaming and high-efficiency blending, supporting small-batch testing and medium-scale production scenarios.
Product Parameters
Model |
TMV-4000T |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
4L, 2kg×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Fixed Revolution-to-Rotation Speed Ratio |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
40 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 380V, 50/60Hz, 5kW |
Overall Dimensions (mm) |
L950×W950×H1050 |
Main Unit Weight |
410 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Vacuum defoaming system, achieving ideal defoaming effect and high mixing homogeneity.
Blade-free operating structure, preventing cross-contamination and simplifying cleaning work.

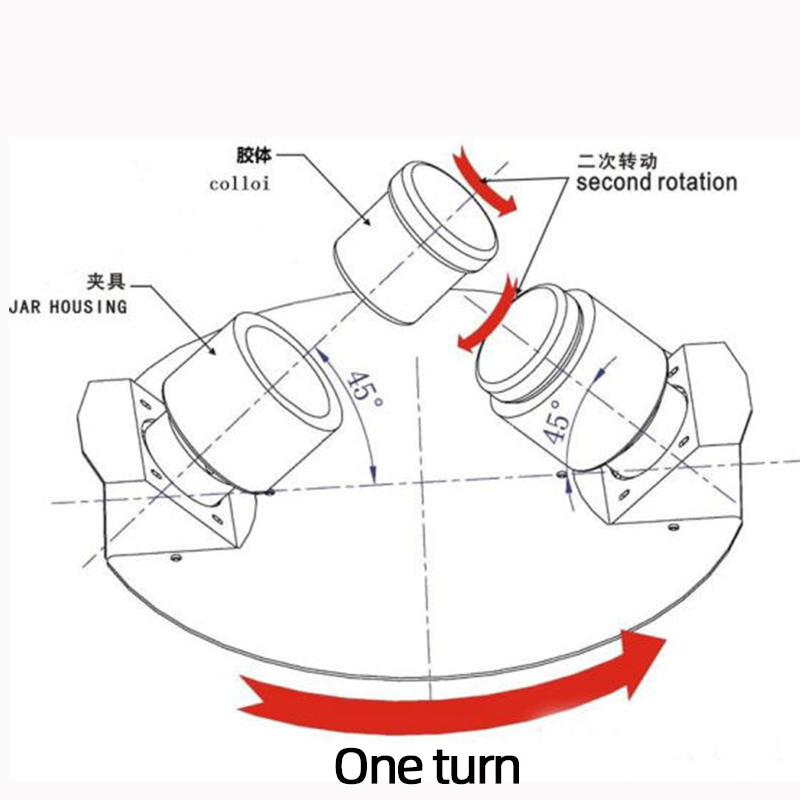

Dual planetary compound centrifugal drive, enabling efficient mixing without any dead corners.
Heavy-duty stable build, ensuring reliable performance and low maintenance workload.
Stepless operational tuning, perfect for foam-prone and high-viscosity material processing.
Complete capacity portfolio, supporting lab R&D and large-batch industrial production.
Quiet performance and easy operation, simple for staff to handle and manage.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: Can this vacuum planetary centrifugal mixer achieve thorough bubble removal for materials?
A: Yes. With a professional vacuum defoaming system, it can conduct full-process vacuum extraction during mixing, thoroughly eliminate micro bubbles and ensure the quality of mixed materials.
Q: How does the blade-free design of this vacuum mixer realize efficient mixing and defoaming?
A: It adopts a dual planetary centrifugal driving structure, matched with vacuum negative pressure. Without stirring blades, it realizes non-destructive mixing and complete defoaming through physical force.
Q: Which specific materials are suitable for processing with this vacuum mixing model?
A: It is ideal for bubble-sensitive, high-viscosity and foam-prone materials like electronic conductive slurry, structural adhesives, epoxy resin, ceramic slurry and various composite raw materials.
