14L Professional Vacuum Planetary Centrifugal Mixer for Chemicals & Cosmetics TMV-15000TT
This 14kg extra-large upgraded vacuum planetary centrifugal mixer features stepless revolution-rotation ratio adjustment, supporting flexible parameter matching for mass hard-to-process materials and efficient vacuum mixing.
- Overview
- Recommended Products
This 14kg extra-large upgraded vacuum planetary centrifugal mixer features stepless revolution-rotation ratio adjustment, supporting flexible parameter matching for mass hard-to-process materials and efficient vacuum mixing.
Product Parameters
Model |
TMV-15000TT |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
14L, 7kg×2 (Material Density: 1.0) |
Revolution Speed |
200–1500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-1.5） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.5 ± 0.5 kPa |
Power Supply |
AC 380V, 50/60Hz, 16.5kW |
Overall Dimensions (mm) |
L1400×W1150×H1100 |
Main Unit Weight |
700 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Stepless revolution-rotation ratio adjustment, adapts to a full range of materials and ultra-hard-to-uniform mixing materials.
High-performance vacuum defoaming system, delivers efficient and thorough bubble elimination for large-capacity production.

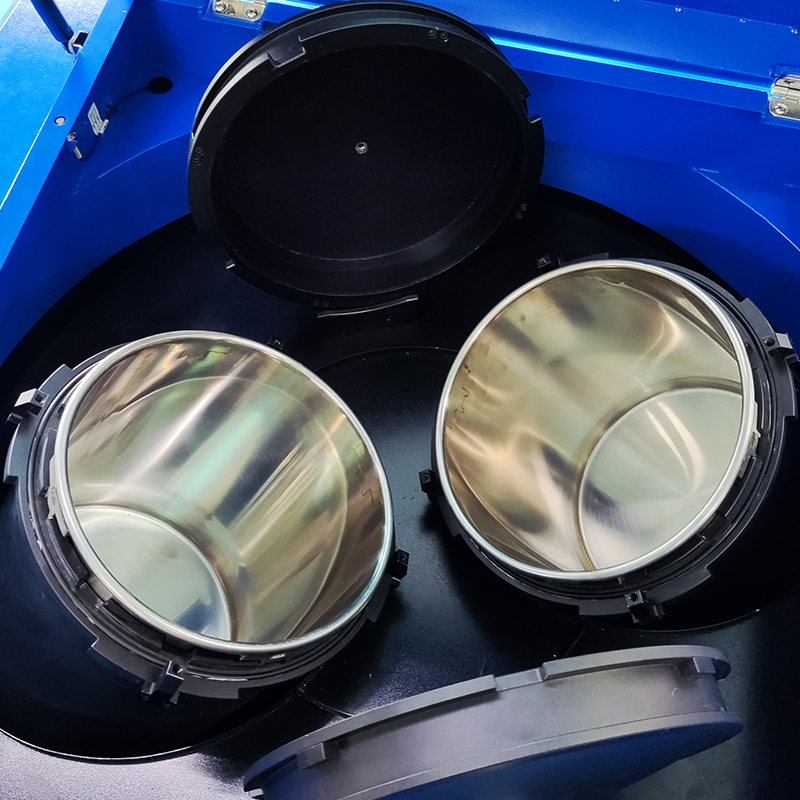

Totally blade-free structure, avoids material residue and guarantees high material purity.

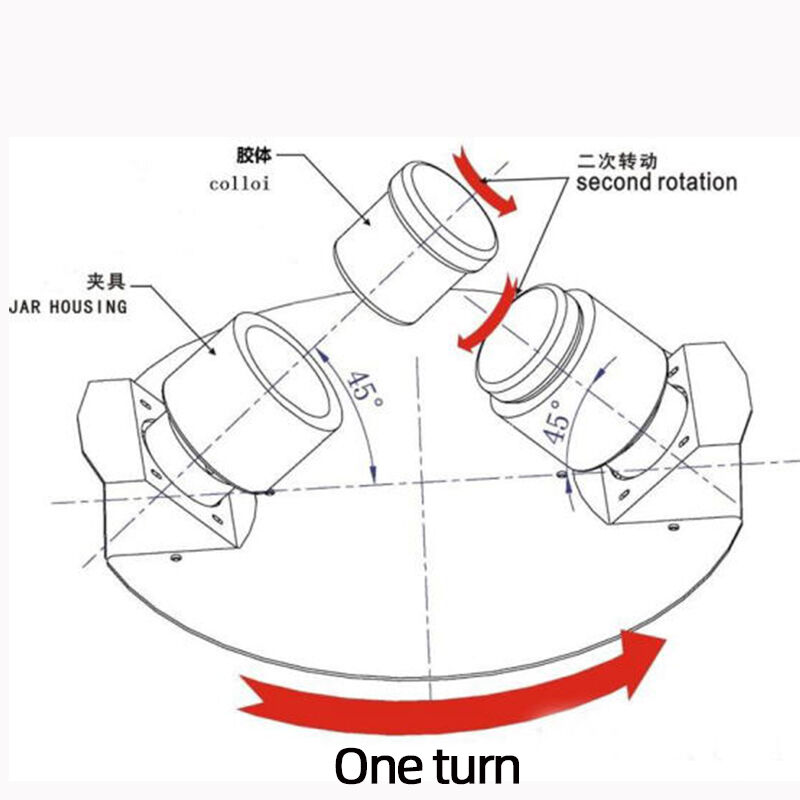

Heavy-duty dual planetary centrifugal motion, realizes efficient large-capacity mixing without dead corners.
Customizable parameter matching, supports diversified high-difficulty industrial material processing.
Extra-stable mechanical structure, ensures low failure rate under long-hour heavy-load operation.
Humanized operation design, easy to control with low maintenance workload.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What value does the adjustable revolution-rotation ratio bring to this mixer?
A: The adjustable rotation ratio supports flexible fine-tuning of revolution and rotation speeds to adapt to different material characteristics. It significantly improves the equipment’s adaptability, realizing uniform mixing for more material types and ultra-hard-to-blend materials that conventional models cannot process effectively.
Q: What is the key difference between this upgraded model and standard vacuum planetary centrifugal mixers?
A: Unlike standard vacuum mixers, this upgraded large-capacity model is equipped with an adjustable revolution-rotation ratio function, with stronger flexibility in parameter adjustment. It is specially optimized for hard-to-uniform mass-production materials, while keeping professional vacuum defoaming and blade-free mixing advantages, with more comprehensive application scenarios.
Q: What materials and scenarios are compatible with this upgraded vacuum mixer?
A: It is compatible with all kinds of common materials and a full range of hard-to-mix materials, such as high-viscosity slurries, composite materials, ceramic pastes, electronic slurries and resin materials. It covers laboratory research and development, small-scale trials up to 14kg extra-large industrial mass production.
