2L Vacuum Planetary Centrifugal Mixer for Multi-Material Homogenization TMV-2000T
Without built-in stirring blades, this vacuum mixer uses centrifugal force to complete efficient mixing, meeting strict defoaming demands for various chemical and electronic materials.
- Overview
- Recommended Products
Without built-in stirring blades, this vacuum mixer uses centrifugal force to complete efficient mixing, meeting strict defoaming demands for various chemical and electronic materials.
Product Parameters
Model |
TMV-2000T |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
2000ml, 1000g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Fixed Revolution-to-Rotation Speed Ratio |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 220V, 50/60Hz, 1.8kW |
Overall Dimensions (mm) |
L730×W730×H910 |
Main Unit Weight |
195 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Vacuum defoaming technology, realizing non-destructive and bubble-free mixing for sensitive materials.
Non-contact blade-free design, avoiding impurity mixing and easing container care.

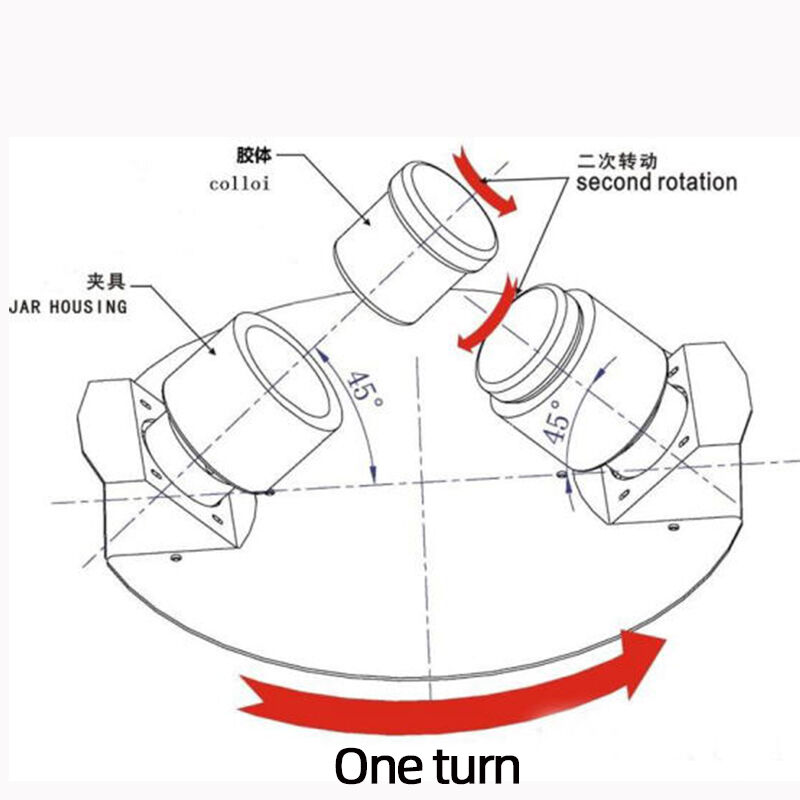

Dual planetary centrifugal rotary motion, completing thorough blending without mixing dead zones.
Dependable structural design, featuring stable performance and prolonged service life.
Infinite parameter regulation, offering wide adaptability to high-viscosity raw materials.
Various capacity choices, applicable for lab sample preparation and industrial processing.
Smooth operation and straightforward control, convenient for daily use and maintenance.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: Does this vacuum mixer provide stable and continuous vacuum defoaming during operation?
A: Yes. It is equipped with a reliable vacuum system that maintains stable negative pressure while mixing, continuously eliminating air bubbles and improving the compactness and uniformity of materials.
Q: Since there are no mixing blades, how can this vacuum planetary mixer ensure effective defoaming?
A: Without any stirring blades, it relies on dual planetary compound centrifugal motion and vacuum suction. It drives materials to turn over sufficiently and removes bubbles under negative pressure, with high processing efficiency.
Q: What industries and materials is this non-temperature-controlled vacuum mixer applied to?
A: It is widely used in electronics, adhesive, ceramic and composite material industries, suitable for high-viscosity slurry, foaming raw materials, resin and other materials that must be processed for defoaming.
