9L Industrial Grade Temperature-Controlled Vacuum Planetary Centrifugal Mixer TMV-10000TTC
Intelligent water-cooling cooling and accurate temperature control make this vacuum mixer an optimal solution for bubble-free, constant-temperature material preparation.
- Overview
- Recommended Products
Intelligent water-cooling cooling and accurate temperature control make this vacuum mixer an optimal solution for bubble-free, constant-temperature material preparation.
Product Parameters
Model |
TMV-10000TTC |
Product Name |
Temperature-Controlled Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum, Temperature Control |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
9L, 4.5kg×2 (Material Density: 1.0) |
Revolution Speed |
200–2000 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio (0–1.5) |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
40 m³/h |
Vacuum Degree |
0.5 ± 0.5 kPa |
Temperature Control Capacity |
Adjustable Water Temperature: -15℃ to 25℃ |
Power Supply |
Main Unit: AC 380V, 50/60Hz, 16.5kW |
Water Chiller: AC 220V, 50/60Hz, 2kW | |
Overall Dimensions (mm) |
Main Unit: L1500×W1150×H1100 |
Water Chiller: L600×W600×H1000 | |
Main Unit Weight |
Main Unit: 1000 kg |
Water Chiller: 115 kg | |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Advanced intelligent water-cooling thermostats, accurate and reliable temperature control.
Dedicated vacuum defoaming module, achieving uniform bubble-free material mixing.
Blade-less non-contact mixing, ensuring material purity and easy cleaning.

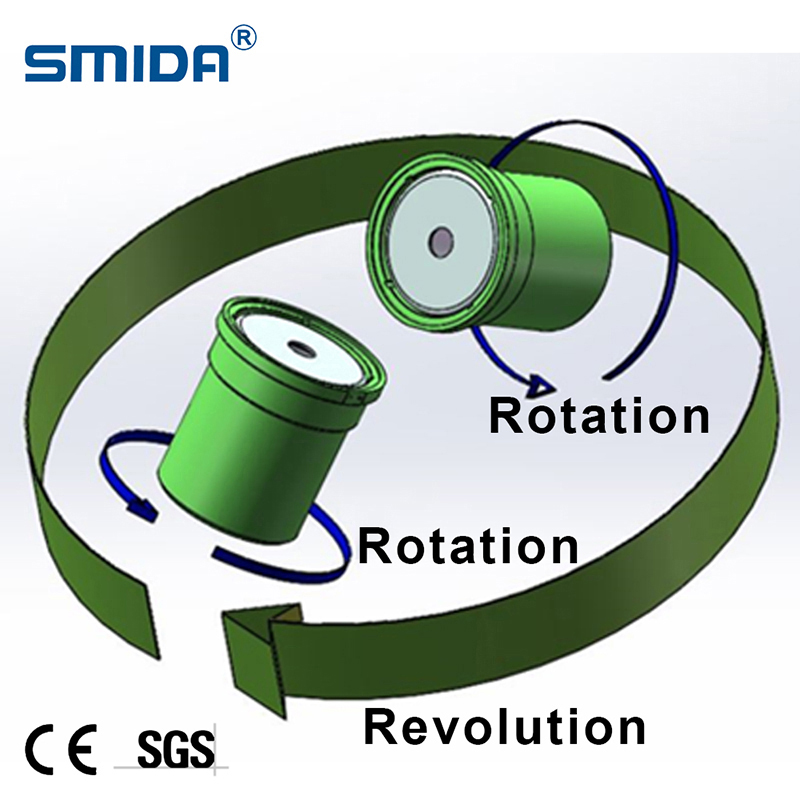

Dual planetary compound centrifugal motion, efficient mixing without any dead corners.
Stepless operating parameter tuning, perfect for heat-sensitive high-viscosity materials.
Complete capacity portfolio, covering laboratory to large-scale industrial production.
Durable mechanical structure, stable performance for long continuous working.
Low noise operation and simple setup, easy to use and daily maintenance.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What is the material handling capacity of this industrial mixer?
A: The maximum processing capacity of this unit is 9kg; a specialized adapter fixture is required to accommodate small containers.
Q: Is this mixer designed with built-in mixing or stirring blades?

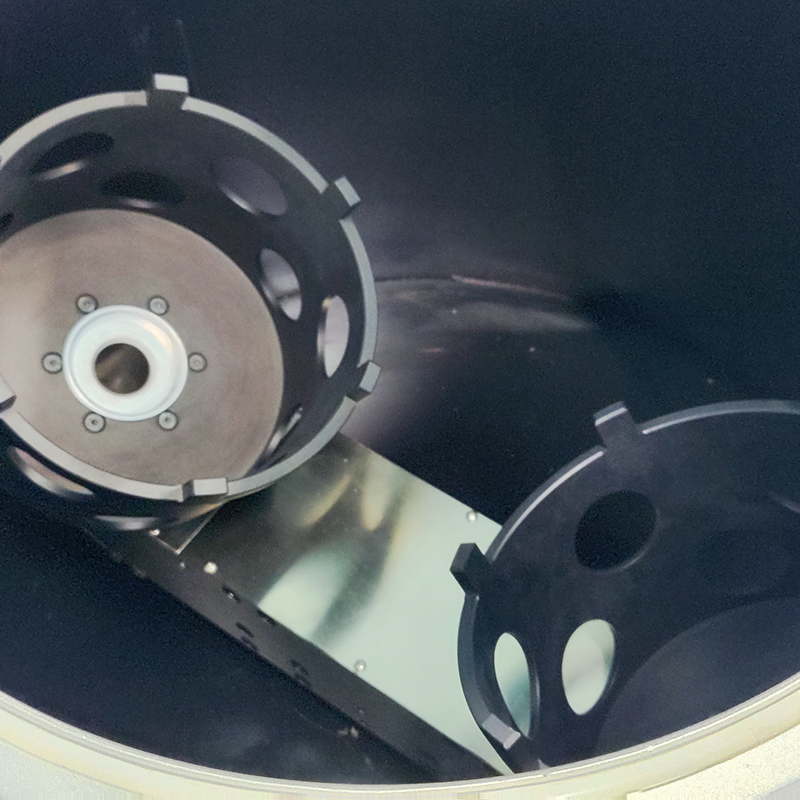

A: No built-in mixing or stirring blades are used. SMIDA adopts a dual planetary motion design across its full mixer lineup, supporting simultaneous dual-container mixing.
Q: Will raw materials be over-mixed by using this SMIDA planetary centrifugal mixer?
A: Raw materials will not be over-mixed. Stepless parameter adjustment is supported, allowing you to set personalized mixing parameters based on the specific nature of different materials.
