300g Intelligent Temperature-Controlled Vacuum Planetary Centrifugal Mixer for Lab Applications TMV-310TTC
This temperature-controlled vacuum planetary centrifugal mixer is equipped with intelligent water-cooling cooling, realizing precise temperature control and efficient vacuum defoaming for various materials.
- Overview
- Recommended Products
This temperature-controlled vacuum planetary centrifugal mixer is equipped with intelligent water-cooling cooling, realizing precise temperature control and efficient vacuum defoaming for various materials.
Product Parameters
Model |
TMV-310TTC |
Product Name |
Temperature-Controlled Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum, Temperature Control |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
300ml, 150g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio (0–2) |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Temperature Control Capacity |
Adjustable Water Temperature: 10℃ to 25℃(Optional -15 ℃ -25 ℃) |
Power Supply |
Main Unit: AC 220V, 50/60Hz, 2.3kW |
Water Chiller: AC 220V, 50/60Hz, 0.75kW(2kW) | |
Overall Dimensions (mm) |
Main Unit: L650×W650×H820 |
Water Chiller: L280×W560×H460（L600×W600×H1000） | |
Main Unit Weight |
Main Unit: 220 kg |
Water Chiller: 30 kg（115kg） | |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Intelligent water-cooling temperature control, accurate and constant temperature adjustment.
Vacuum defoaming function, realizing bubble-free and high-uniform mixing.
Blade-free structure, no material contamination and easy container cleaning.

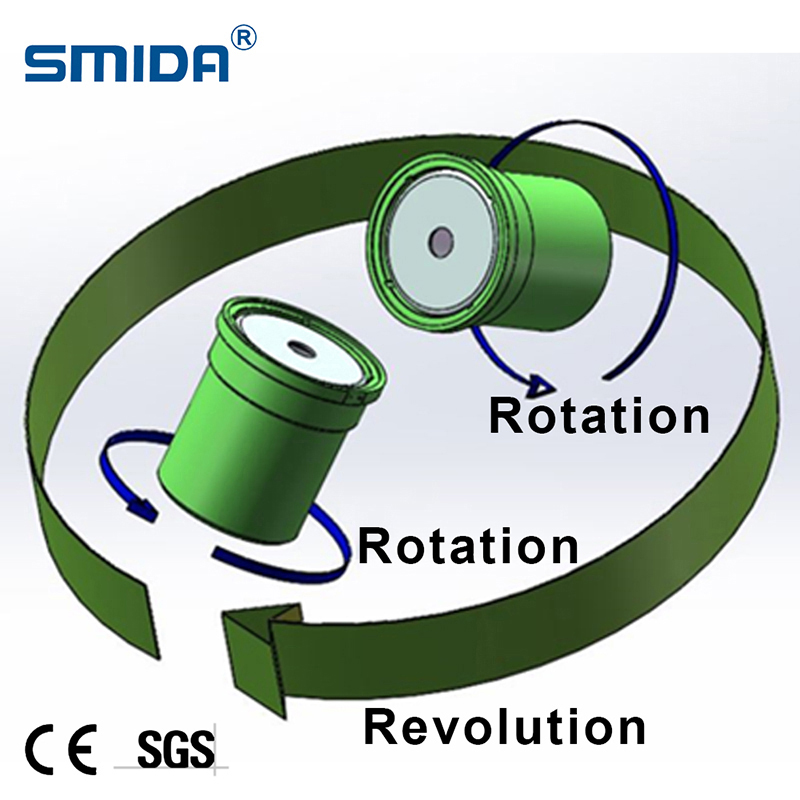

Dual planetary centrifugal motion, efficient mixing without dead corners.
Stepless parameter adjustment, suitable for heat-sensitive and high-viscosity materials.
Multiple capacity options, covering lab R&D and industrial mass production.
Stable and durable structure, supporting long-term continuous operation.
Low noise and easy operation, simple to control and maintain.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What is the working capacity of this machine?
A: This unit features a maximum processing load of 300g; an optional adapter fixture is required for holding small-size material containers.
Q: Is this planetary centrifugal mixer equipped with mixing blades?

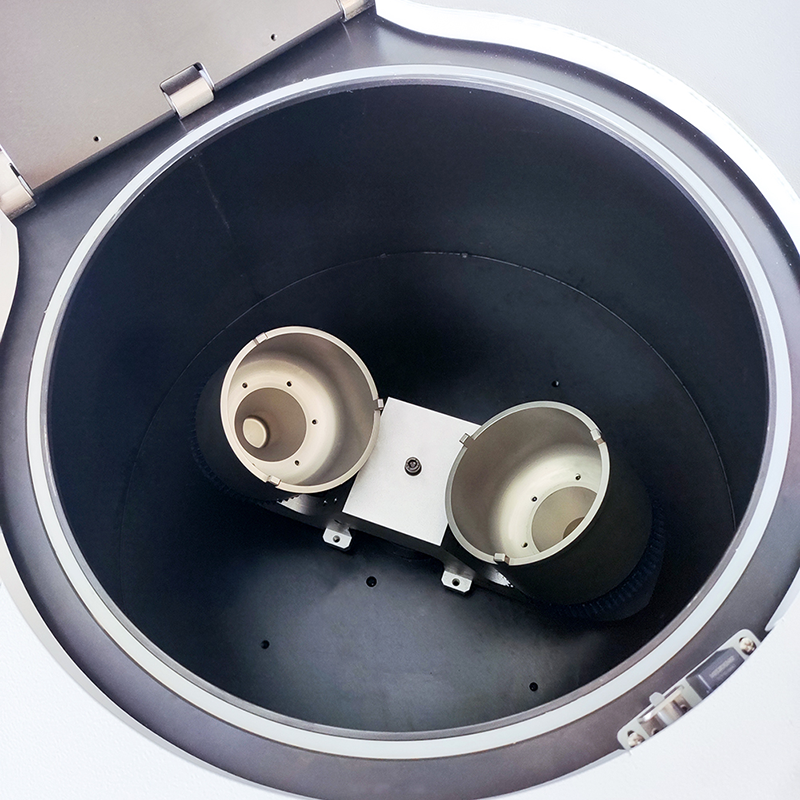

A: No, there are no built-in mixing blades. SMIDA applies a dual-planetary structure for all its mixers, enabling simultaneous mixing in two separate material containers.
Q: Can this SMIDA mixer cause over-mixing to my materials?
A: Over-mixing will not occur. Our mixers support infinitely variable parameter tuning, allowing you to configure custom mixing settings according to the unique properties of your materials.
