300g Vacuum Planetary Centrifugal Mixer High-Speed Defoaming Mixing Equipment TMV-310T
This vacuum planetary centrifugal mixer comes with a blade-free structure, realizing efficient vacuum defoaming and uniform material mixing for lab and industrial applications.
- Overview
- Recommended Products
This vacuum planetary centrifugal mixer comes with a blade-free structure, realizing efficient vacuum defoaming and uniform material mixing for lab and industrial applications.
Product Parameters
Model |
TMV-310T |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
300ml, 150g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Fixed Revolution-to-Rotation Speed Ratio |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 220V, 50/60Hz, 1.5kW |
Overall Dimensions (mm) |
L650×W650×H820 |
Main Unit Weight |
165 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Vacuum defoaming performance, ensuring bubble-free and high-uniformity material mixing.
Blade-free design, avoiding material contamination and making container cleaning easier.
Dual planetary centrifugal motion, realizing efficient blending with no dead corners.
Stable mechanical structure, featuring low failure rate and long service life.
Stepless parameter adjustment, compatible with high-viscosity and foam-prone materials.
Diverse capacity options, suitable for laboratory R&D and industrial batch production.
Low noise and simple operation, effortless to control and maintain.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: Can this vacuum planetary centrifugal mixer remove bubbles during the whole mixing process?
A: Absolutely. This machine is configured with a professional vacuum module, which supports real-time vacuum defoaming in the mixing procedure, greatly improving material uniformity and eliminating internal air bubbles.
Q: This vacuum mixer has no stirring blades, so how does it realize efficient mixing and defoaming?

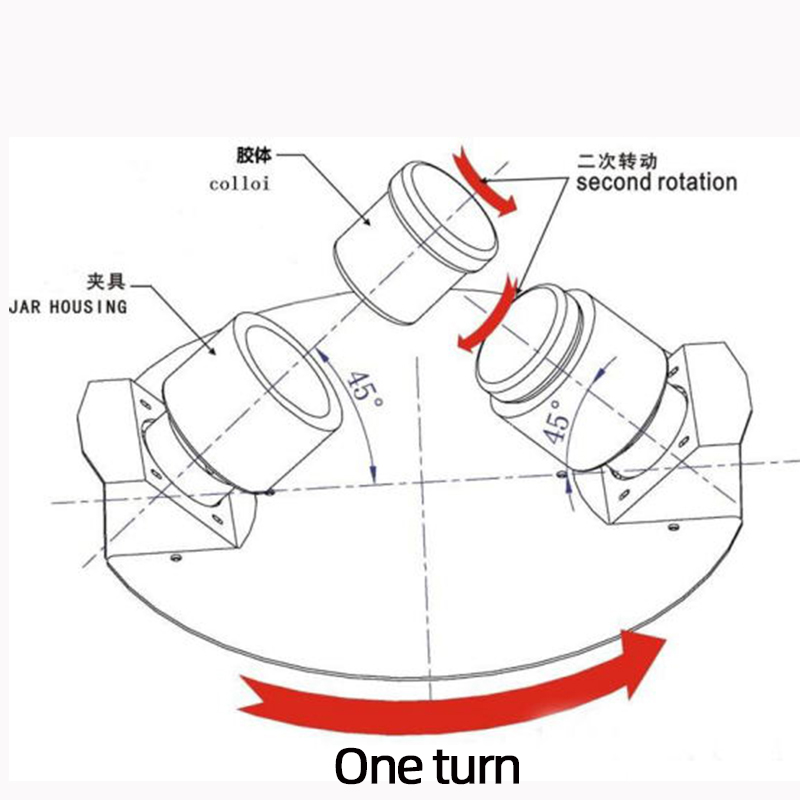

A: With a completely blade-free structure, it adopts dual planetary centrifugal transmission and vacuum negative pressure technology. It drives material cups to rotate in multiple directions to complete mixing and defoaming without damage.
Q: Which material types are compatible with this non-temperature-controlled vacuum mixing equipment?
A: It is applicable to materials that are prone to foaming, have high viscosity and high requirements for bubble removal, such as electronic paste, sealants, resin materials, ceramic slurry and industrial composites.
