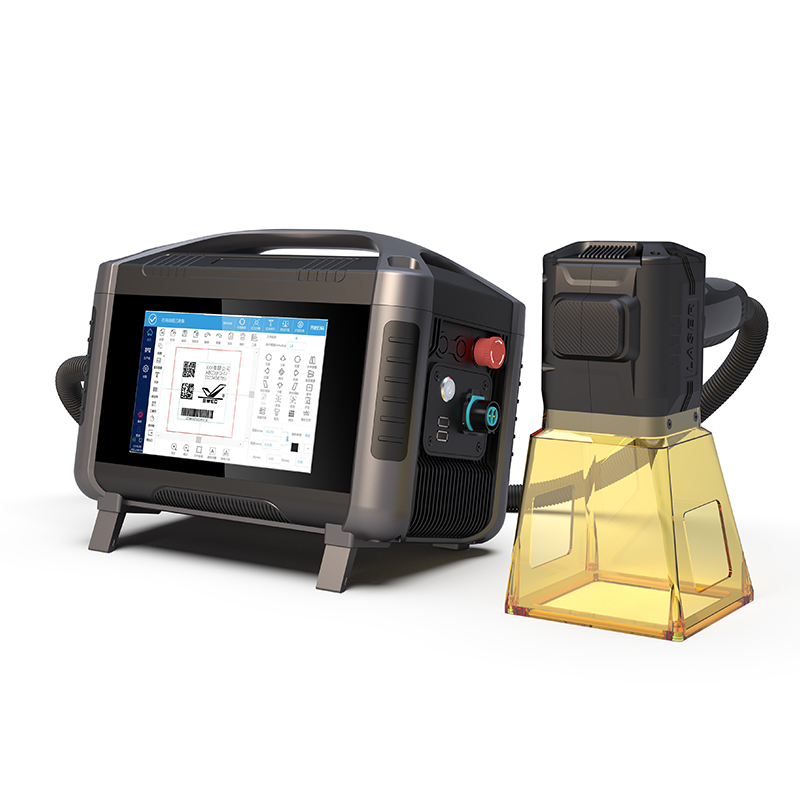

Handheld Fiber Laser Engraver & Portable Marking Machine
This handheld fiber laser engraver has 8W-30W optional power and dual power supplies (AC + battery). It offers micron-level precision, works for metals/non-metals, and features one-click touchscreen operation for indoor/outdoor use.
- Overview
- Recommended Products
This handheld fiber laser engraver has 8W-30W optional power and dual power supplies (AC + battery). It offers micron-level precision, works for metals/non-metals, and features one-click touchscreen operation for indoor/outdoor use.
Product Parameters
Laser Type |
Fiber laser generator |
Output Power |
8W, 20W, 25W, 30W (Optional) |
Marking Range |
70×70mm, 100×100mm (Optional) |
Laser Wavelength |
1064nm |
Marking Speed |
≤7000mm/s |
Line Width |
0.03mm |
Repeat Positioning Accuracy |
0.01mm |
Targeting Method |
Red light positioning and focusing |
Operating System |
Linux system (8-core processor) |
Operation Screen |
8-inch capacitive fully bonded touchscreen |
Supported File Formats |
BMP, DXF, HPGL, JPEG, PLT |
Supported Barcode Types |
CODE39, CODE128, QR, etc. |
Power Supply |
110V/220V AC, 216Wh rechargeable lithium battery (detachable) |
Power Consumption |
145-250W |
Operating Temperature |
0-40℃ |
Total Weight |
6~6.8KG |
Scanning System |
High-precision two-dimensional scanning system |
Focus Lens |
130mm |
Certifications |
CE, FCC-SDOC, FDA, MSDS, ROHS, etc. |
Product Advantages

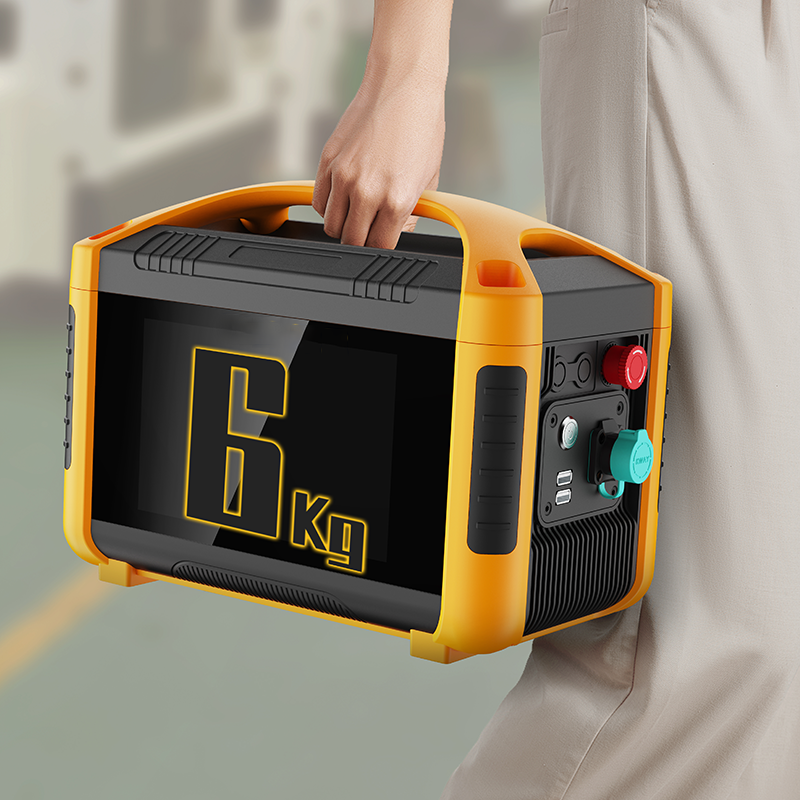

Ultra-Portable Design：Whole machine weighs only 6-6.8kg, handheld operation, flexible for on-site/outdoor marking without fixed workstations.
Dual Power & Long Adaptability：Supports plug-and-play AC power (110V/220V) and detachable lithium battery (216Wh); backup battery option extends usage time.
Micron-Level High Precision：0.03mm line width + 0.01mm repeat positioning accuracy, 2D scanning system ensures consistent, burr-free marking results.
Intelligent Easy Operation：8-inch fully bonded touchscreen + Linux system (8-core processor) for one-click triggering, supports multiple file formats (BMP/DXF/JPEG).

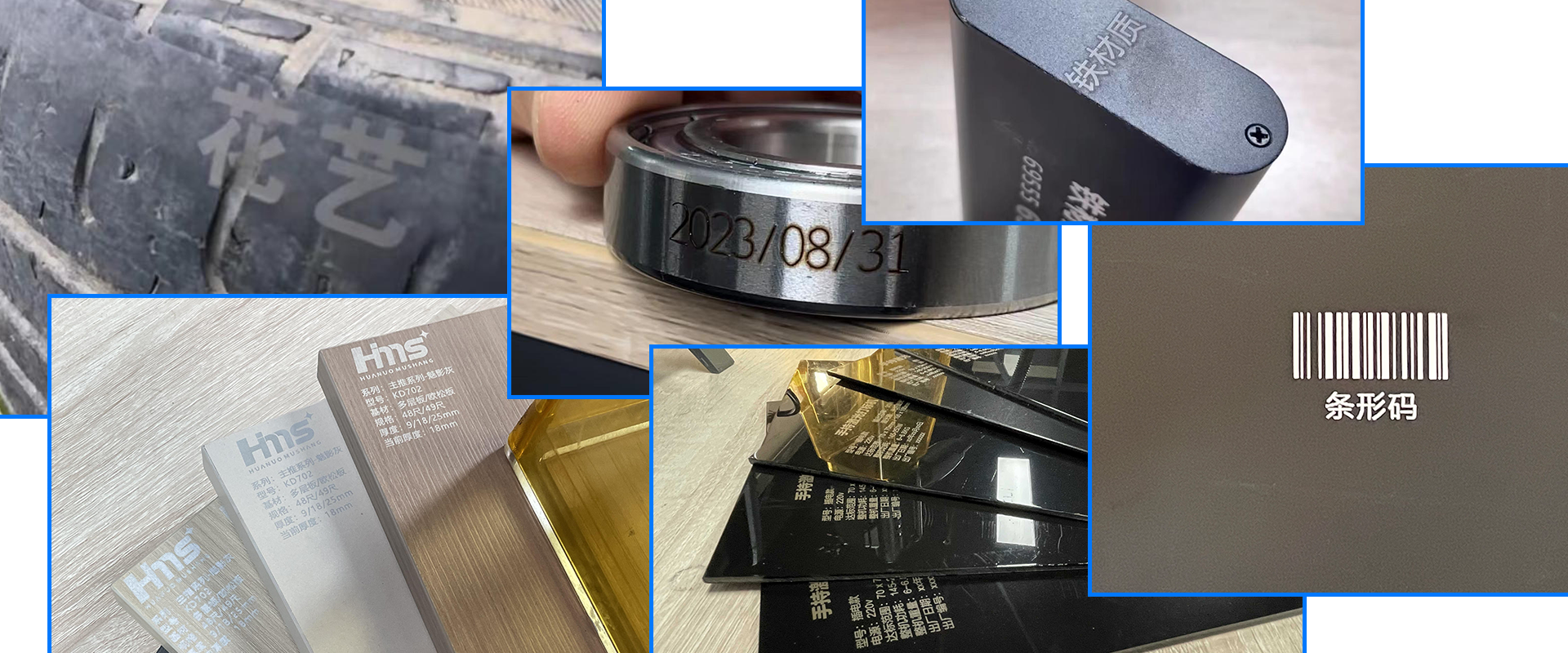

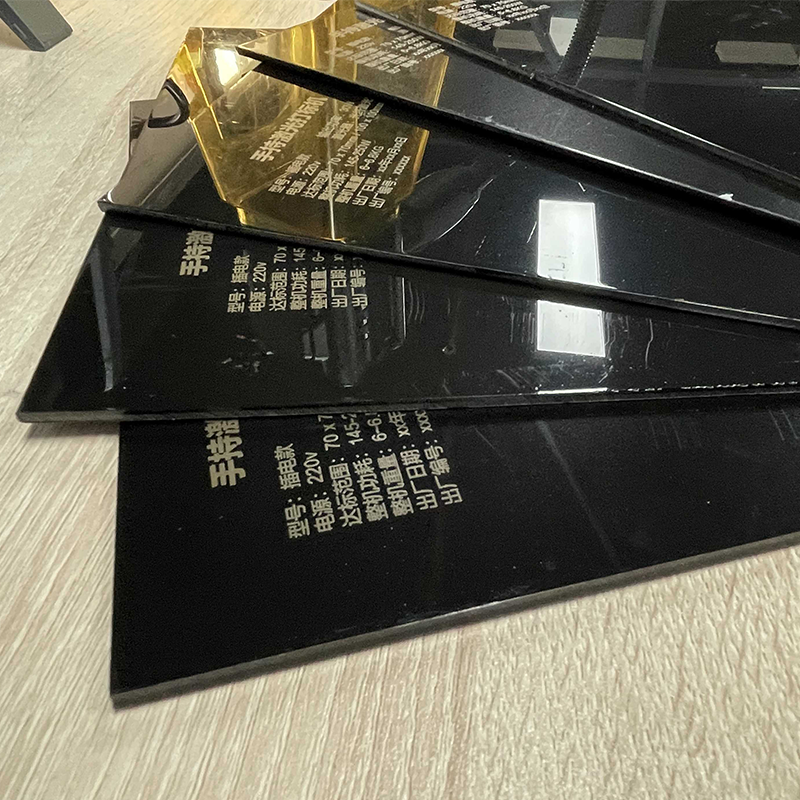

Wide Material Compatibility：Works for both metals (gold, silver, steel) and non-metals (plastic, paper, leather), meeting diverse marking needs.
Authoritative Safety & Reliability：Certified by CE/FCC/FDA/ROHS; built-in protection to avoid operational risks.
Product Application
Widely used in electronics (components marking), mechanical hardware (part identification), food/pharmaceuticals (batch coding), clothing/leather (logo printing), jewelry (personalized engraving), and communication products (QR code/text marking). Suitable for both industrial asset tracking and small-batch customized marking.
FAQ
Q: What materials can this handheld laser engraver mark?
A: It works for metals (gold, silver, steel) and non-metals (plastic, paper, leather) on flat surfaces.
Q: Is it easy to operate for beginners?
A: Yes. It has an 8-inch touchscreen with one-click triggering，no professional skills required; supports multiple common file formats for quick setup.
Q: What types of marking can it achieve?
A: It supports text, logos, QR codes, barcodes, numbers, and custom patterns，meeting industrial coding and personalized engraving needs.
