9L Large Capacity Vacuum Planetary Centrifugal Mixer for Industrial Mass Production TMV-10000TT
The 9kg large-capacity upgraded vacuum planetary centrifugal mixer allows precise revolution-rotation ratio adjustment, providing flexible operation for heavy-duty hard-to-blend industrial materials and stable vacuum defoaming.
- Overview
- Recommended Products
The 9kg large-capacity upgraded vacuum planetary centrifugal mixer allows precise revolution-rotation ratio adjustment, providing flexible operation for heavy-duty hard-to-blend industrial materials and stable vacuum defoaming.
Product Parameters
Model |
TMV-10000TT |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
9L, 4.5kg×2 (Material Density: 1.0) |
Revolution Speed |
200–2000 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-1.5） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
40 m³/h |
Vacuum Degree |
0.5 ± 0.5 kPa |
Power Supply |
AC 380V, 50/60Hz, 14.5kW |
Overall Dimensions (mm) |
L1200×W1000×H1050 |
Main Unit Weight |
600 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages

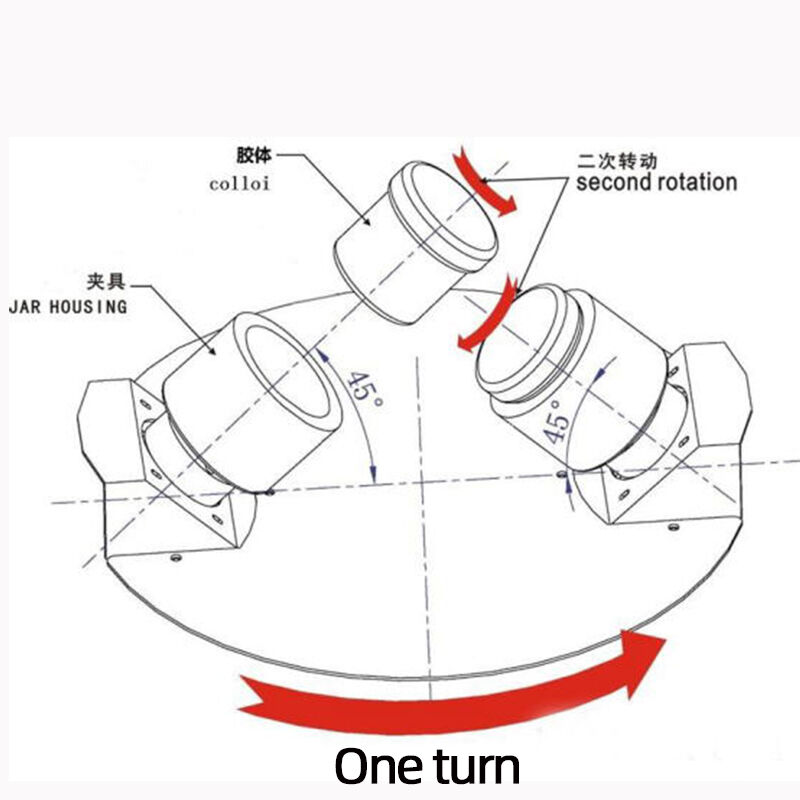

Adjustable revolution-rotation ratio design, fits more material types and difficult-to-mix uniform industrial materials.
Stable vacuum defoaming module, provides continuous bubble removal for large-capacity material mixing.
Blade-less non-contact mixing, avoids material damage and ensures product purity.
Powerful dual planetary centrifugal system, achieves high-efficiency mixing with zero dead zones.
Flexible parameter configuration, adapts to heavy-duty industrial material processing demands.
Solid and durable structure, supports long-term continuous mass production operation.
Stable performance and easy maintenance, ideal for industrial batch processing.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What is the benefit of the adjustable revolution-rotation ratio on this mixer?
A: The adjustable rotation ratio allows you to flexibly calibrate revolution speed and rotation speed to suit different material properties. It substantially enhances the machine’s adaptability, achieving consistent blending for more material types and hard-to-homogenize materials that standard mixers cannot handle well.
Q: How does this upgraded model differ from traditional vacuum planetary centrifugal mixers?
A: In comparison with traditional vacuum mixers, this upgraded model is added with an adjustable revolution-rotation ratio function, offering greater flexibility in operation parameters. It is specially optimized for hard-to-uniform industrial materials, while retaining professional vacuum defoaming and blade-free mixing merits, with wider application coverage.
Q: What materials and scenarios is this upgraded vacuum mixer designed for?
A: It is suitable for diverse general materials and plenty of hard-to-blend materials, including high-viscosity slurries, composite materials, ceramic pastes, electronic slurry and resin materials. It covers laboratory R&D, small-batch production up to 9kg large-scale industrial mass manufacturing.
