4L Wide Temperature Range Vacuum Planetary Centrifugal Mixer for Special Materials TMV-4000TTC
With professional intelligent water-cooling cooling, this precision temperature-controlled mixer delivers efficient homogenization and defoaming while maintaining ideal working temperature.
- Overview
- Recommended Products
With professional intelligent water-cooling cooling, this precision temperature-controlled mixer delivers efficient homogenization and defoaming while maintaining ideal working temperature.
Product Parameters
Model |
TMV-4000TTC |
Product Name |
Temperature-Controlled Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum, Temperature Control |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
4L, 2kg×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio (0–2) |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
40 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Temperature Control Capacity |
Adjustable Water Temperature: 10℃ to 25℃(Optional -15 ℃ -25 ℃) |
Power Supply |
Main Unit: AC 380V, 50/60Hz, 9kW |
Water Chiller: AC 220V, 50/60Hz, 0.75kW(2kW) | |
Overall Dimensions (mm) |
Main Unit: L950×W950×H1050 |
Water Chiller: L280×W560×H460（L600×W600×H1000） | |
Main Unit Weight |
Main Unit: 450 kg |
Water Chiller: 30 kg（115kg） | |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Precision intelligent water-cooling temperature control, stable and constant temperature output.
Vacuum mixing & defoaming integration, creating bubble-free high-uniformity results.
Blade-free operating design, no material impurities and easy container cleaning.

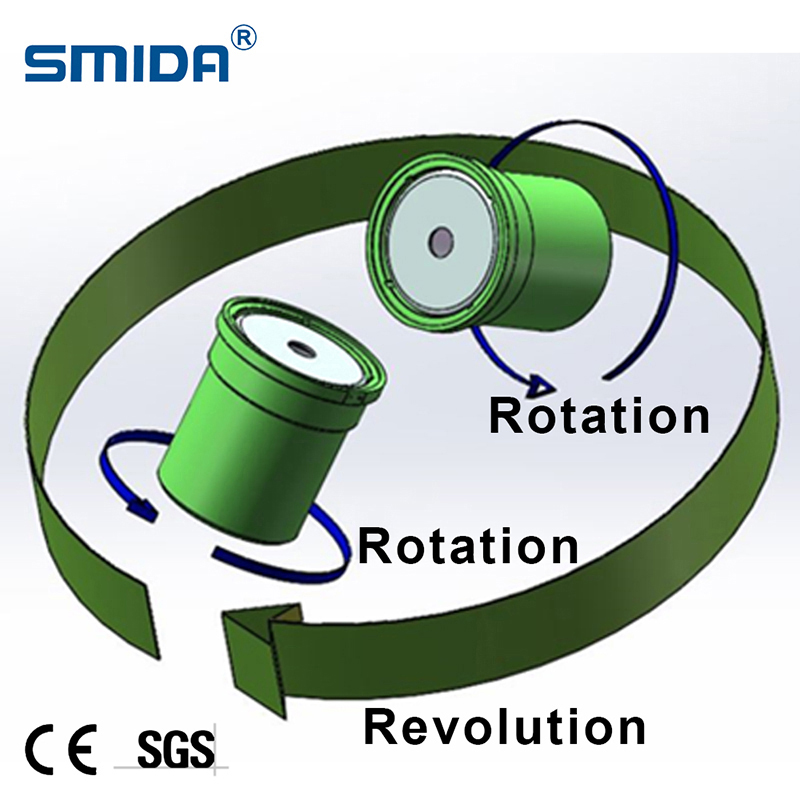

Dual planetary centrifugal drive, efficient mixing with zero mixing dead angles.
Stepless speed & time adjustment, wide adaptability to high-viscosity materials.
Multiple capacity models available, for lab use and industrial mass production.
Heavy-duty stable design, suitable for continuous industrial operation.
Low noise level and intuitive panel, easy to operate with low maintenance.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What is the usable processing range of this mixer?
A: This model supports a maximum processing weight of 4000g, and a specialized adapter fixture is required to hold micro containers.
Q: Does this planetary centrifugal mixer include any stirring blade components?

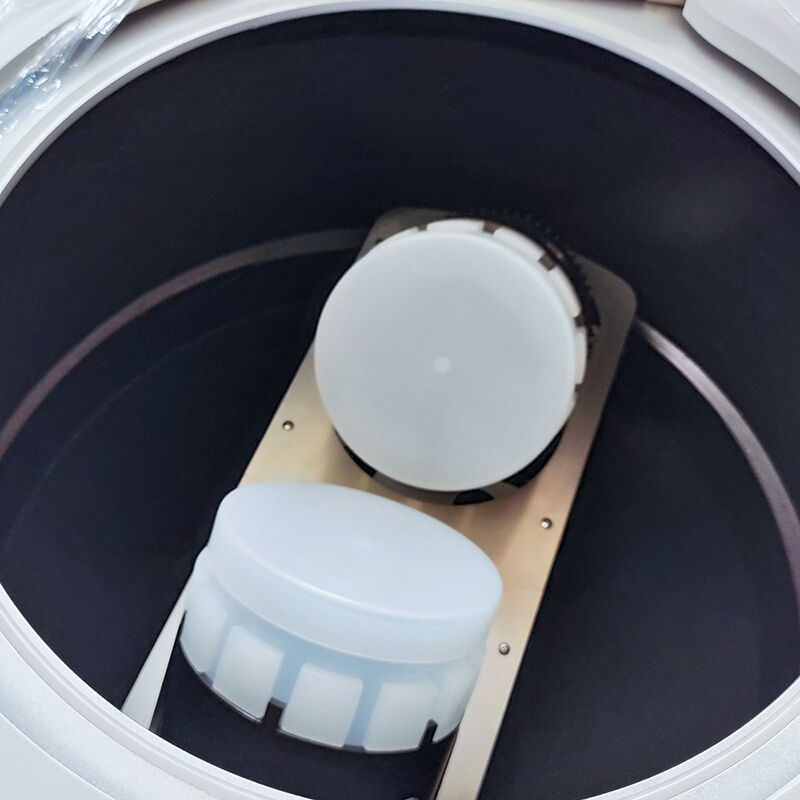

A: No stirring blade components are included. All SMIDA mixers adopt a dualplanetary structure, which can mix materials in two containers at the same time efficiently.
Q: Can the SMIDA centrifugal mixer lead to overmixing of my raw materials?
A: It will not lead to overmixing. The equipment supports stepless parameter configuration, enabling you to adjust suitable mixing schemes according to diverse material properties.
