300g Lab Use Vacuum Planetary Centrifugal Mixer for R&D Material Testing TMV-310TT
This 300g upgraded vacuum planetary centrifugal mixer comes with adjustable revolution-rotation ratio, supporting flexible parameter tuning to realize efficient vacuum defoaming and uniform mixing for various hard-to-blend lab materials.
- Overview
- Recommended Products
This 300g upgraded vacuum planetary centrifugal mixer comes with adjustable revolution-rotation ratio, supporting flexible parameter tuning to realize efficient vacuum defoaming and uniform mixing for various hard-to-blend lab materials.
Product Parameters
Model |
TMV-310TT |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
300ml, 150g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-2） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 200V, 50/60Hz, 2.3kW |
Overall Dimensions (mm) |
L650×W650×H820 |
Main Unit Weight |
180 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product advantages
Adjustable revolution-rotation ratio, compatible with more material types and hard-to-uniform mixing materials.
Professional vacuum defoaming function, realizes bubble-free and high-consistency material mixing.
Blade-free structure, avoids material contamination and makes container cleaning more convenient.

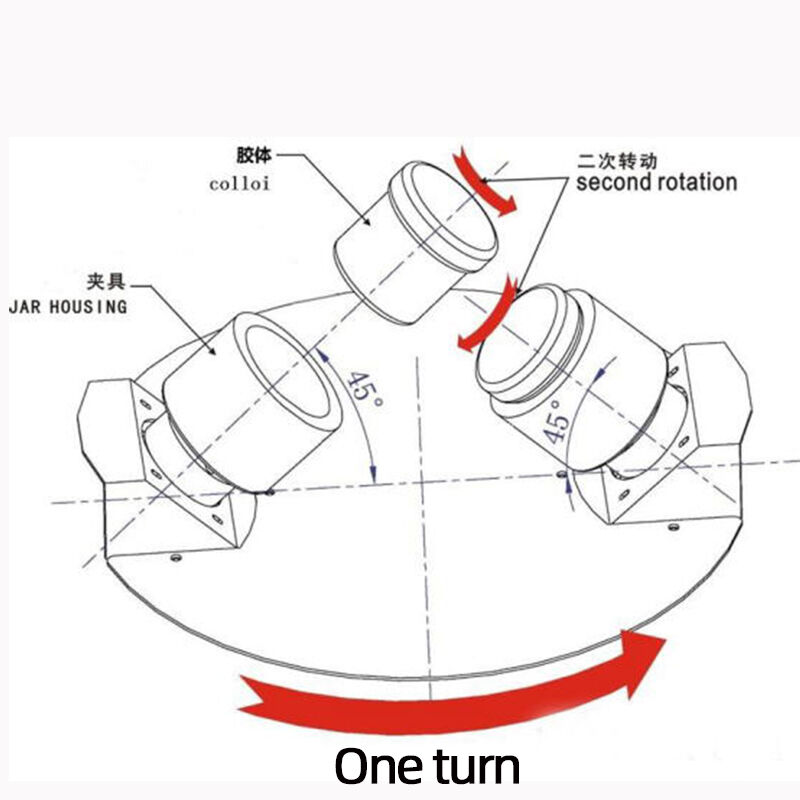

Dual planetary centrifugal motion, achieves efficient mixing without any dead corners.
Stepless parameter adjustment, supports flexible matching for different material characteristics.
Compact and stable structure, ensures stable operation with low failure rate.
Low noise and simple operation, easy for laboratory staff to master and maintain.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What is the function of the adjustable revolution-rotation ratio for this mixer?
A: The adjustable rotation ratio lets you flexibly tweak the revolution and rotation speeds to suit diverse material characteristics. It significantly boosts the equipment’s compatibility, allowing uniform blending for more material kinds and hard-to-mix substances that standard machines fail to process well.
Q: What is the difference between this upgraded model and ordinary vacuum planetary centrifugal mixers?
A: Unlike standard vacuum mixers, this upgraded unit features an extra adjustable revolution-rotation ratio function, bringing greater parameter flexibility. It is specially optimized for hard-to-uniform materials, while keeping the core merits of professional vacuum defoaming and blade-free mixing, with broader application scenarios.
Q: What materials and scenarios is this upgraded vacuum mixer suitable for?
A: It works for all kinds of common materials and a wide range of hard-to-blend materials, including high-viscosity slurries, composite materials, ceramic pastes, electronic slurries and resin materials. It covers laboratory R&D, small-scale testing all the way to large-volume industrial production up to 300g.
