150g Portable Planetary Centrifugal Mixer for Small Scale Material Processing TM-310
This bladefree nonvacuum planetary centrifugal mixer features a 150g singlecup design. It realizes efficient and uniform material mixing through dual planetary motion, ideal for laboratory R&D and smalldose sample preparation.
- Overview
- Recommended Products
This blade-free non-vacuum planetary centrifugal mixer features a 150g single-cup design. It realizes efficient and uniform material mixing through dual planetary motion, ideal for laboratory R&D and small-dose sample preparation.
Product Parameters
Model |
TM-310 |
Product Name |
Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
100ml, 150g×1 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Fixed Revolution-to-Rotation Speed Ratio |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Power Supply |
AC 220V, 50/60Hz, 0.5kW |
Overall Dimensions (mm) |
L430×W350×H450 |
Main Unit Weight |
30 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Blade-free structure, prevents material contamination and simplifies cleaning.

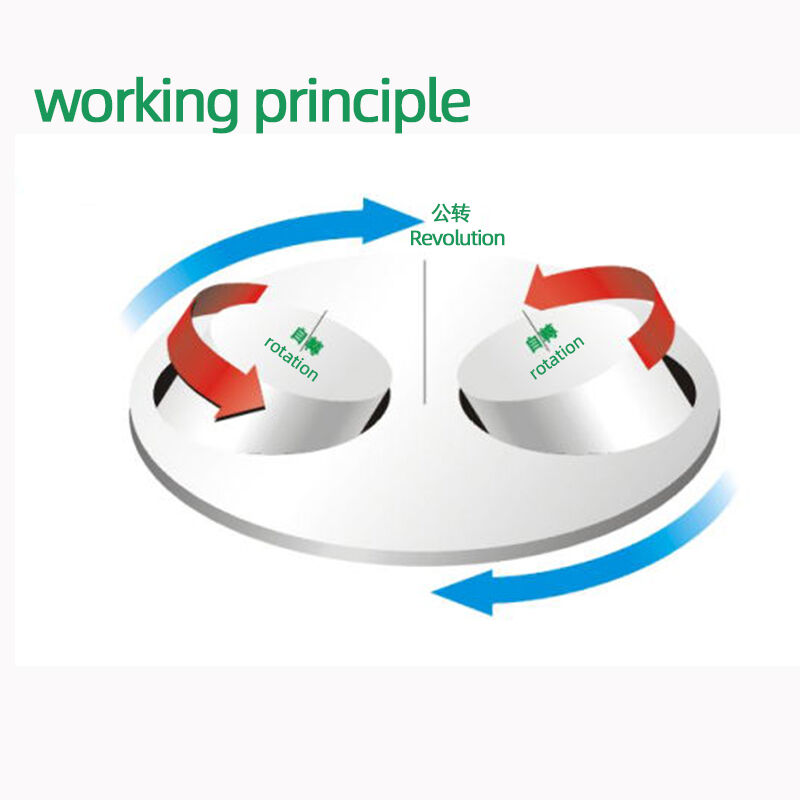

Dual planetary centrifugal movement, delivers efficient mixing with no dead zones.
Compact non-vacuum design, ensures stable running and minimal breakdowns.
Diverse capacity choices, suitable for laboratory and industrial applications.
Infinitely variable parameter settings, compatible with a wide range of materials.
Low noise output and intuitive operation, simple for users to learn.
Excellent compatibility with different types of material vessels.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: Does this planetary centrifugal mixer come with a vacuum system?
A: No. This is a professional non-vacuum version, created for routine material mixing work that doesn’t require vacuum defoaming. It has a more straightforward structure and higher cost performance.
Q: Without any stirring paddles inside, how does this mixer achieve uniform blending?
A: With no built -in stirring paddles at all, this machine adopts a dual planetary centrifugal driving structure. It drives material cups to rotate in multiple directions, and realizes thorough mixing and dispersion only by centrifugal force.
Q: What kinds of materials can this non-vacuum planetary centrifugal mixer handle?
A: It is suitable for common materials that have no strict vacuum defoaming requirements, such as pigments, printing inks, coatings, adhesives, cosmetics, pastes and other regular chemical materials. Different models can satisfy lab R&D, small-scale trial production and medium-batch manufacturing demands.
