High-Precision Ceramic Three Roll Grinding Mill

MTR series three roll mill is a professional dispersed grinding equipment, featuring imported ceramic rollers and microcontroller control. It achieves 1μm minimum grinding precision via shear force from roller squeezing and speed differences, supports stepless speed regulation and convenient gap adjustment , complies with ANSI B65 safety standards, and excels at handling high-viscosity materials.

Product Parameters

Product Advantages

Ultra-High Precision Grinding：Minimum grinding precision up to 1μm (material-dependent), transforming wide-distribution materials into narrow-pointed distributions with excellent dispersion effect.

Strong Dispersion Capacity：2-3 times more powerful than similar products, effectively processing high-viscosity slurries and tough-to-disperse materials.

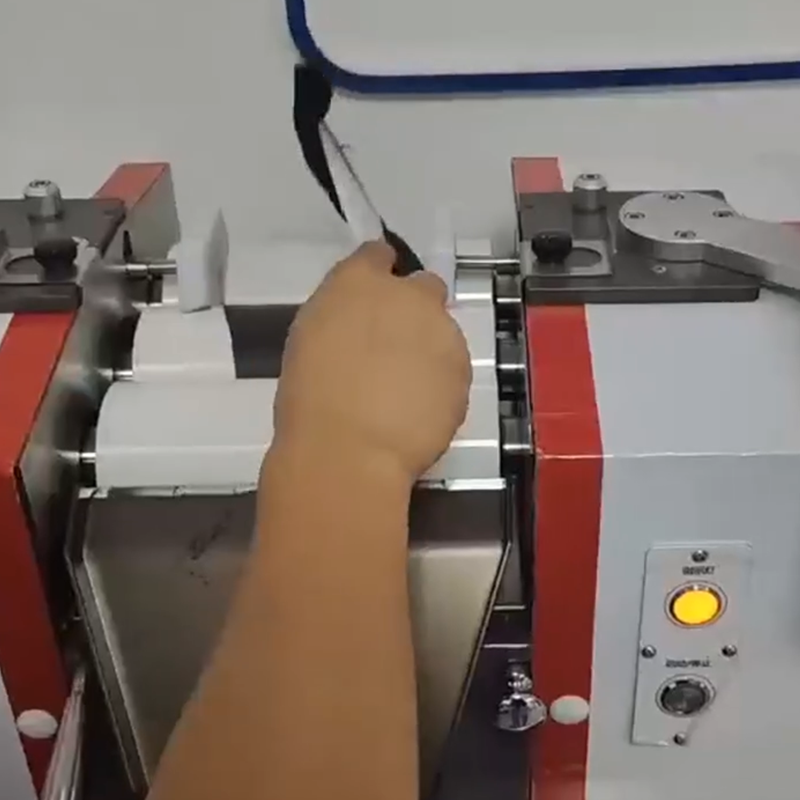

Premium Ceramic Rollers：Imported nanoscale ceramic rollers with multiple material options (Al₂O₃/ZrO₂/SiC/stainless), ensuring high density, wear resistance and chemical stability.

User-Friendly & Efficient Operation：Gap adjustment via man-machine interface (no need to disassemble the casing); stepless speed regulation (0-500rpm) adapts to diverse grinding needs.

Comprehensive Safety Protection：Complies with ANSI B65 safety standard; immediate shutdown and alarm when foreign objects contact, equipped with cleaning protection bracket to avoid hazards.

Intelligent Stable Control：Self-developed microcontroller control board integrates control, mechanical and sensing functions; precise control of roller straightness and coaxiality via laser detection.

Product Application

New Energy Batteries

Button Cell

Anode and Cathode Materials

Fuel Cell

Sodium Battery

Solid State Batteries

New materials

Graphene

Single Walled Carbon Nanotubes

Multi Walled Carbon Nanotubes

Thermal Conductive Carbon Materials

Conductive Carbon Materials

Metal Slurry

Ag Slurry

Au Slurry

Ni Slurry

W Slurry

Molybdenum manganese Slurry

Electronic Components & Supplies

Automotive Electronics

Communication Electronics

Capacitance and Inductance

Digital Products

Consumer Electronics

Electronic Adhesive

IC Packaging Adhesive

Camera Module

LED

LCD

UV GEL

Cosmetics

Lipstick

Blusher

Eyebrow Pencil

Eyeliner

BB Cream

Printing Ink

Conductive Ink

Anti-counterfeiting Ink

Screen Printing Ink

Offset Printing Ink

Solder Mask Ink

Research Universities

Laboratory Project Team

3D Printing

Nano Functional Materials

Defense and Military Structural Adhesive

Anti Corrosion Coating

FAQ

Q: How does SMIDA three roll mill achieve high-precision grinding and dispersion?

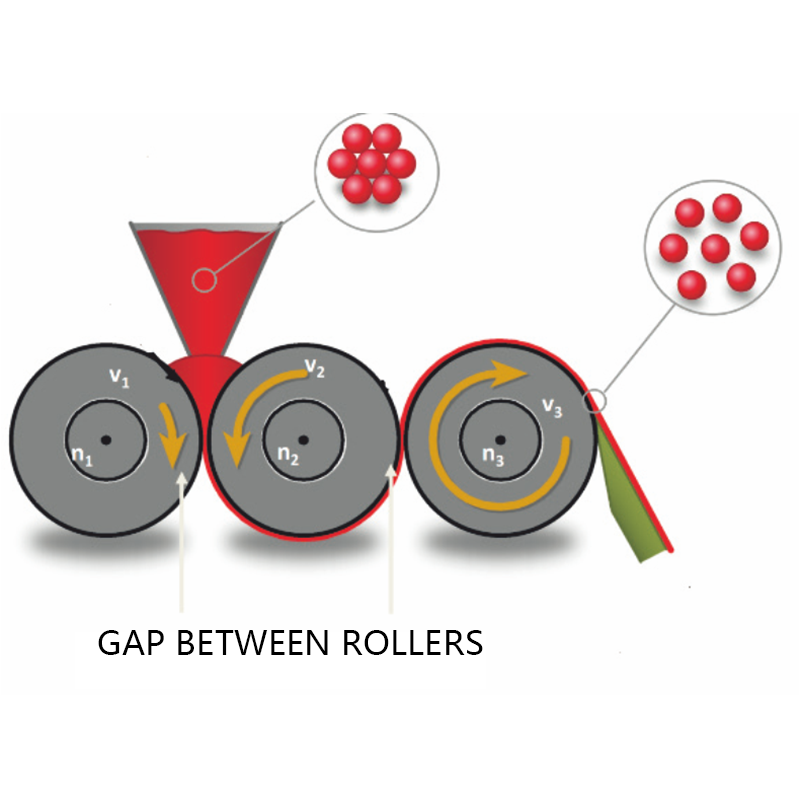

A: It utilizes shear force generated by mutual squeezing, different rotation directions, and speed differences of three ceramic rollers. With precise gap control and laser-detected roller straightness/coaxiality, it realizes minimum 1μm grinding precision (material-dependent).

Q: What materials and industries is this three roll mill suitable for?

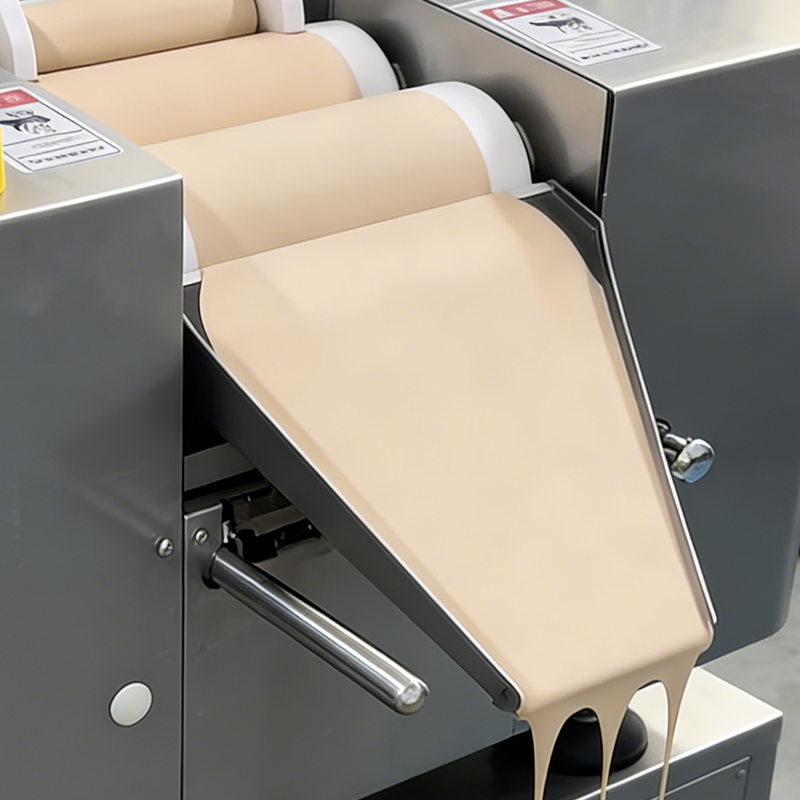

A: It excels at processing high-viscosity materials and is widely used in coating, ink, pigment, adhesive, ceramic slurry, electronic paste industries, ideal for scenarios requiring ultra-fine particle size and uniform dispersion.

Q: What safety features does the MTR series three roll mill have, and how to adjust the roller gap?

A: It complies with ANSI B65 safety standards, with automatic shutdown and alarm when foreign objects contact, plus a cleaning protection bracket. The roller gap is adjusted via the man-machine interface—no need to disassemble the casing, convenient and efficient.
