1500g Cooling Temperature-Controlled Vacuum Planetary Centrifugal Mixer TMV-1500TTC
Our temperature-controlled vacuum planetary centrifugal mixer adopts intelligent water-cooling cooling system, ensuring constant temperature mixing and reliable operation in lab and industrial scenarios.
- Overview
- Recommended Products
Our temperature-controlled vacuum planetary centrifugal mixer adopts intelligent water-cooling cooling system, ensuring constant temperature mixing and reliable operation in lab and industrial scenarios.
Product Parameters
Model |
TMV-1500TTC |
Product Name |
Temperature-Controlled Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum, Temperature Control |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
1500ml, 750g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio (0–2) |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Temperature Control Capacity |
Adjustable Water Temperature: 10℃ to 25℃(Optional -15 ℃ -25 ℃) |
Power Supply |
Main Unit: AC 220V, 50/60Hz, 4kW |
Water Chiller: AC 220V, 50/60Hz, 0.75kW(2kW) | |
Overall Dimensions (mm) |
Main Unit: L730×W730×H910 |
Water Chiller: L280×W560×H460（L600×W600×H1000） | |
Main Unit Weight |
Main Unit: 220 kg |
Water Chiller: 30 kg（115kg） | |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Professional intelligent water cooling, delivering steady and accurate temperature control.
Integrated vacuum defoaming technology, ensuring non-bubble uniform mixing.
No stirring blade structure, maintaining material purity and easy cleaning.

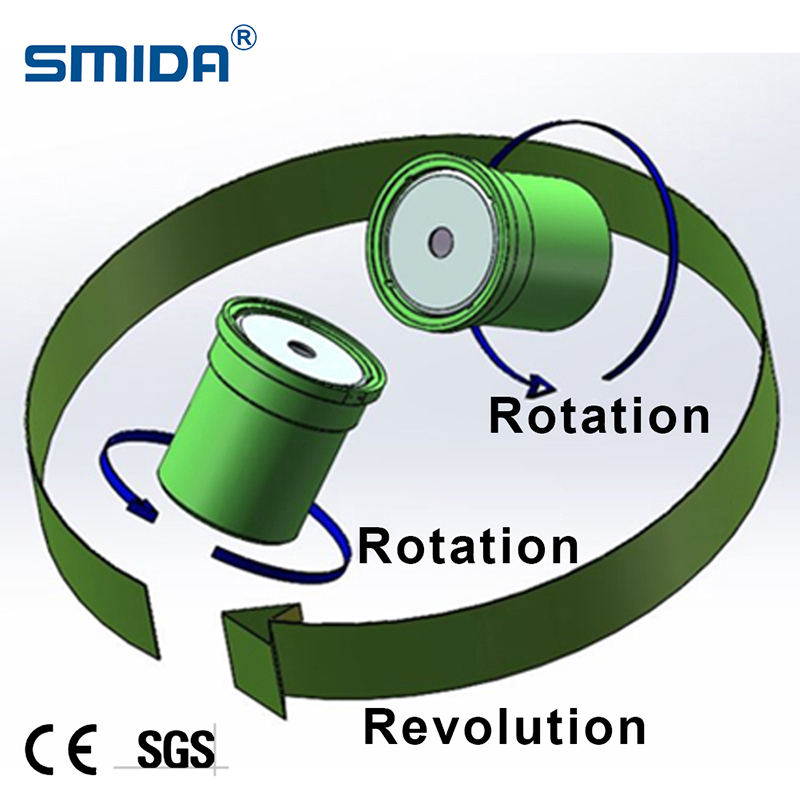

Compound dual planetary centrifugal action, high-efficiency mixing without dead angles.
Stepless adjustable parameters, compatible with heat-sensitive and high-viscosity raw materials.
Various capacity configurations, meeting lab R&D and industrial manufacturing needs.
Stable performance and durable design, ideal for long-term continuous processing.
Low operating noise and straightforward operation, easy to master and maintain.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What is the max and min processing capacity of this device?
A: This equipment offers a maximum material capacity of 1500g, and a specialized adapter fixture is needed to hold small containers.
Q: Does this model come with any internal stirring blades?
A: No stirring blades are fitted in this mixer. Every SMIDA mixer utilizes a dualplanetary operating design, which allows mixing two material containers in one run.
Q: Will my materials be overmixed when using the SMIDA centrifugal mixer?
A: Your materials will not be overmixed. Stepless adjustable parameters are available on our mixers, letting you define targeted mixing setups for various material characteristics.
