700g Vacuum Planetary Centrifugal Mixer for High Viscosity Material Processing TMV-700T
Adopting dual planetary centrifugal motion, this vacuum mixer achieves bubble-free homogenization and avoids material contamination without any stirring blades.
- Overview
- Recommended Products
Adopting dual planetary centrifugal motion, this vacuum mixer achieves bubble-free homogenization and avoids material contamination without any stirring blades.
Product Parameters
Model |
TMV-700T |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
700ml, 350g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Fixed Revolution-to-Rotation Speed Ratio |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 220V, 50/60Hz, 1.5kW |
Overall Dimensions (mm) |
L650×W650×H820 |
Main Unit Weight |
165 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Vacuum defoaming integration, eliminating internal air bubbles and improving mixing consistency.
Blade-less structure, preventing material pollution and simplifying vessel maintenance.
Dual planetary centrifugal movement, achieving high-efficiency homogenization without dead zones.
Robust and reliable construction, guaranteeing stable running and less downtime.
Infinitely variable parameter settings, adapting to various viscous and foaming materials.
Multiple capacity configurations, covering lab testing and medium-scale industrial production.
Quiet running and intuitive control, easy to master and daily upkeep.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: Is the vacuum defoaming function carried out synchronously with the mixing operation?
A: Yes. This vacuum mixer integrates mixing and defoaming functions. Its stable vacuum system can continuously extract air during mixing, achieving a perfect bubble-free treatment effect.
Q: Without built-in agitator blades, how does this vacuum model ensure qualified mixing and defoaming?

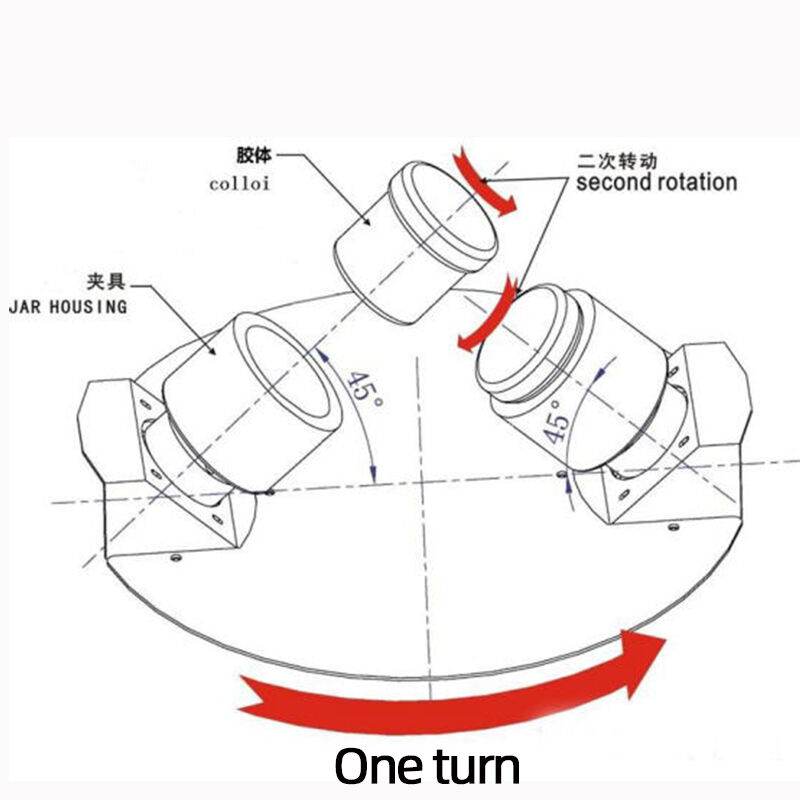

A: It uses a dual planetary centrifugal motion structure and vacuum negative pressure to work. There are no stirring blades inside, and it only relies on physical force to achieve uniform mixing and thorough defoaming.
Q: For which materials and working scenarios is this vacuum planetary mixer recommended?
A: It is suitable for high-viscosity, foam-prone and bubble-sensitive raw materials, including conductive slurry, adhesives, epoxy, ceramic mud and special composites. It can be used for lab testing and industrial trial production.
