4L Vacuum Planetary Centrifugal Mixer for Battery Slurry and Paste Mixing TMV-4000TT
This 4000g upgraded vacuum planetary centrifugal mixer is equipped with freely adjustable revolution-rotation ratio, optimizing mixing parameters to tackle industrial hard-to-mix slurries and achieve bubble-free results.
- Overview
- Recommended Products
This 4000g upgraded vacuum planetary centrifugal mixer is equipped with freely adjustable revolution-rotation ratio, optimizing mixing parameters to tackle industrial hard-to-mix slurries and achieve bubble-free results.
Product Parameters
Model |
TMV-4000TT |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
4L, 2kg×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-2） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
40 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 380V, 50/60Hz, 9kW |
Overall Dimensions (mm) |
L950×W950×H1050 |
Main Unit Weight |
420 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Precise revolution-rotation ratio adjustment caters to more material categories and hard-to-blend uniform materials.
Efficient vacuum defoaming technology, ensures ideal bubble removal and high mixing homogeneity.
Blade-free operating structure, prevents cross-contamination and simplifies cleaning work.

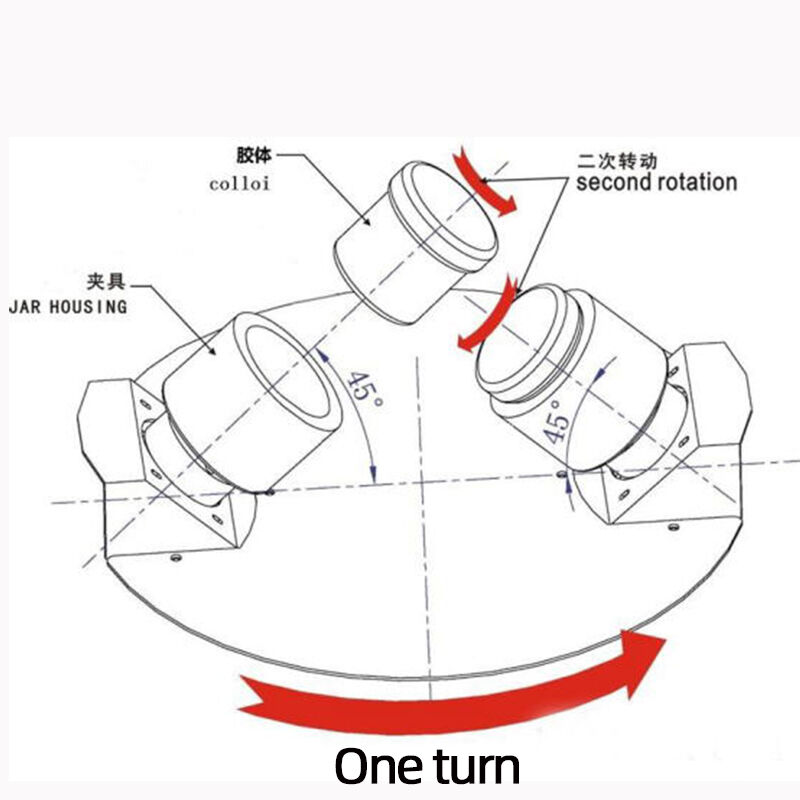

Dual planetary compound centrifugal drive, enables efficient mixing without any dead corners.
Stepless operational parameter tuning, perfect for industrial hard-to-process slurries.
Heavy-duty stable build, ensures reliable performance for medium-scale production.
Low operating noise and easy operation, suitable for long-hour industrial use.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
1.Q: What effect does the adjustable revolution-rotation ratio have on this mixer?
A: The adjustable rotation ratio supports flexible modification of revolution and rotation speeds to match different material features. It greatly elevates the equipment’s adaptability, enabling uniform mixing for more material categories and difficult-to-process materials that conventional mixers struggle with.
2.Q: What makes this upgraded model different from basic vacuum planetary centrifugal mixers?
A: Versus basic vacuum mixers, this upgraded version is equipped with an adjustable revolution-rotation ratio function, featuring more flexible parameter matching. It is specially optimized for materials that are difficult to mix evenly, while keeping professional vacuum defoaming and blade-free mixing advantages, with wider applicable scenes.
3.Q: For which materials and scenarios is this upgraded vacuum mixer designed?
A: It is intended for various routine materials and a wide range of hard-to-uniform materials, such as high-viscosity slurries, composite materials, ceramic pastes, electronic slurries and resin materials. It covers laboratory development, small-scale testing up to 4kg for large industrial manufacturing.
