2L Constant Temperature-Controlled Vacuum Planetary Centrifugal Mixer TMV-2000TTC
With professional intelligent water-cooling cooling, this precision temperature-controlled mixer delivers efficient homogenization and defoaming while maintaining ideal working temperature.
- Overview
- Recommended Products
With professional intelligent water-cooling cooling, this precision temperature-controlled mixer delivers efficient homogenization and defoaming while maintaining ideal working temperature.
Product Parameters
Model |
TMV-2000TTC |
Product Name |
Temperature-Controlled Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum, Temperature Control |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
2L, 1kg×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio (0–2) |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Temperature Control Capacity |
Adjustable Water Temperature: 10℃ to 25℃(Optional -15 ℃ -25 ℃) |
Power Supply |
Main Unit: AC 220V, 50/60Hz, 4kW |
Water Chiller: AC 220V, 50/60Hz, 0.75kW(2kW) | |
Overall Dimensions (mm) |
Main Unit: L730×W730×H910 |
Water Chiller: L280×W560×H460（L600×W600×H1000） | |
Main Unit Weight |
Main Unit: 220 kg |
Water Chiller: 30 kg（115kg） | |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Efficient intelligent water-cooling system, precise constant temperature control.
Vacuum environment defoaming, realizing high-homogeneity bubble-free mixing.
Blade-free construction, preventing cross-contamination and easy vessel care.

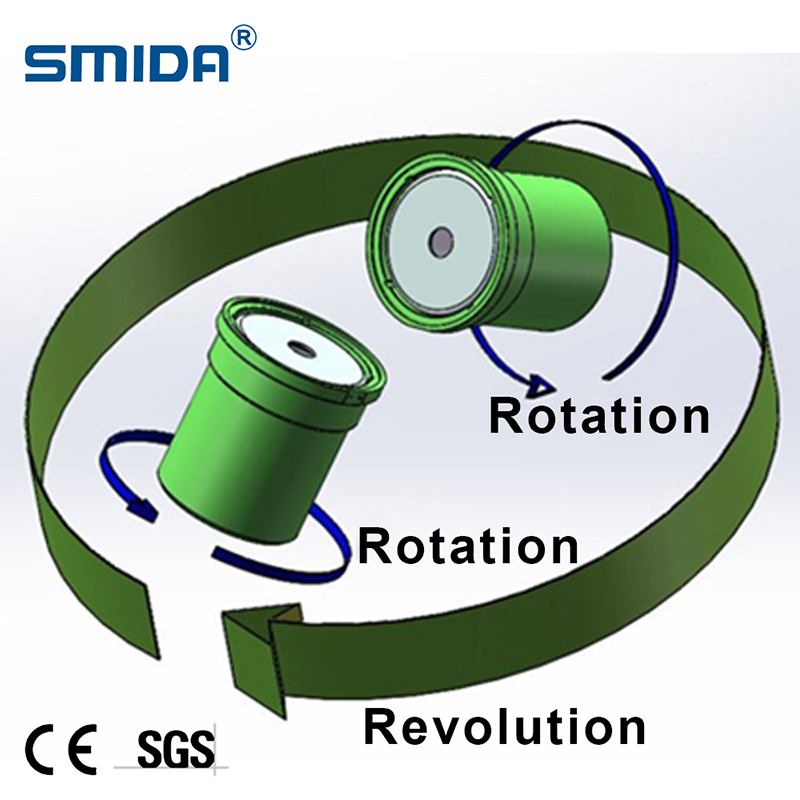

Dual planetary centrifugal rotary motion, efficient homogenization without dead zones.
Infinite parameter regulation, suitable for diverse heat-sensitive materials.
Full capacity range selection, covering lab testing to industrial large-batch production.
Solid structure with stable running, supporting continuous long-hour work.
Quiet performance and simple control, convenient for daily use and maintenance.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What loading capacity does this processing equipment support?
A: This equipment has a maximum usable capacity of 2000g, and an adapter fixture must be used to fit small containers.
Q: Are mixing blades part of the design for this planetary centrifugal mixer?

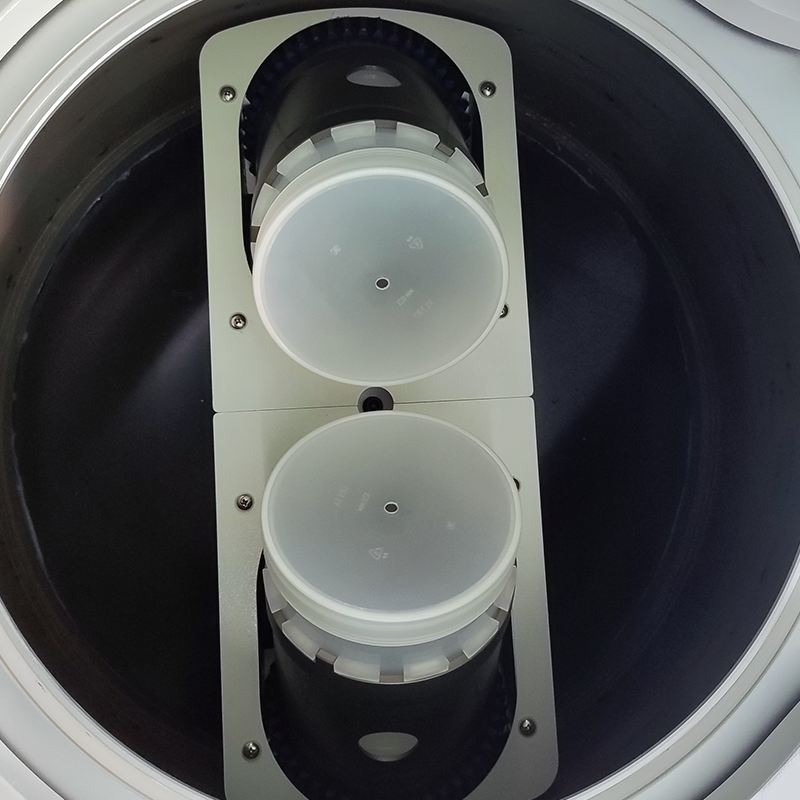

A: No, mixing blades are not part of the structure. SMIDA equips all its mixers with a dual planetary drive system, realizing simultaneous mixing in two independent containers.
Q: Does the SMIDA planetary mixer carry the risk of excessive material mixing?
A: Excessive mixing is not a concern. Our mixers feature infinitely adjustable operating parameters, so you can set proper mixing parameters based on each material’s specific features.
