1500g Vacuum Planetary Centrifugal Mixer for Semiconductor Material Processing TMV-1500TT
This 1500g upgraded vacuum planetary centrifugal mixer adopts an adjustable revolution-rotation ratio design, delivering flexible parameter control for efficient homogenization and thorough vacuum defoaming of complex materials.
- Overview
- Recommended Products
This 1500g upgraded vacuum planetary centrifugal mixer adopts an adjustable revolution-rotation ratio design, delivering flexible parameter control for efficient homogenization and thorough vacuum defoaming of complex materials.
Product Parameters
Model |
TMV-1500TT |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
1500ml, 750g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-2） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 200V, 50/60Hz, 2.8kW |
Overall Dimensions (mm) |
L730×W730×H910 |
Main Unit Weight |
215 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product advantages
Freely adjustable revolution-rotation ratio, applicable to a wider range of materials and hard-to-mix uniform materials.
Integrated vacuum mixing and defoaming, achieves thorough bubble removal and high-quality mixing effect.
No stirring blade structure, maintains raw material purity and enables quick cleaning.

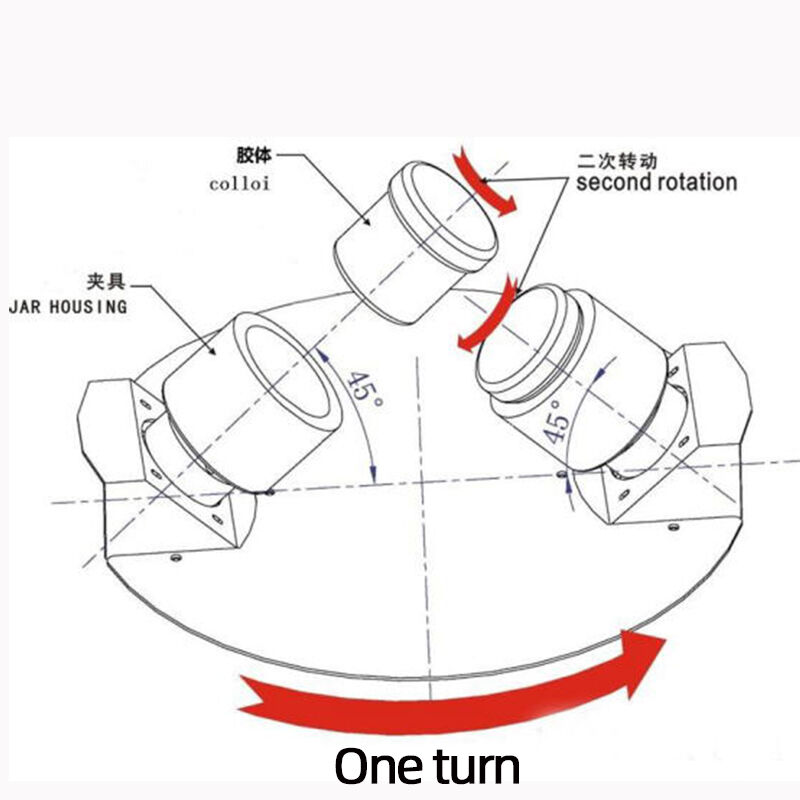

Compound dual planetary centrifugal action, performs efficient blending without dead angles.
Stepless adjustable operating parameters, optimizes mixing schemes for complex materials.
Stable mechanical design, features low breakdown probability and reliable performance.
User-friendly panel and low noise, simple to operate with minimal maintenance.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What purpose does the adjustable revolution-rotation ratio serve on this mixer?
A: The adjustable rotation ratio enables you to flexibly regulate revolution and rotation speeds to fit the features of different materials. It notably improves the equipment’s applicability, realizing consistent mixing for more material varieties and tough-to-blend materials that regular machines can’t process properly.
Q: What sets this upgraded model apart from regular vacuum planetary centrifugal mixers?
A: Compared with typical vacuum mixers, this upgraded variant adds an adjustable revolution-rotation ratio function, delivering higher flexibility in parameter settings. It is specially optimized for materials that are hard to mix uniformly, while retaining professional vacuum defoaming and blade-free mixing benefits, with wider usage scenarios.
Q: What materials and working scenarios are ideal for this upgraded vacuum mixer?
A: It is perfect for various general materials and a wide spectrum of hard-to-uniform materials, like high-viscosity slurries, composite materials, ceramic mud, electronic slurries and resin materials. It covers lab research, small-scale testing up to 1500g capacity for large industrial batch production.
