2L Low Noise Vacuum Planetary Centrifugal Mixer with Stable Operation TMV-2000TT
The 2000g enhanced vacuum planetary centrifugal mixer supports continuous revolution-rotation ratio adjustment, offering flexible mixing settings to process hard-to-uniform materials with reliable vacuum defoaming performance.
- Overview
- Recommended Products
The 2000g enhanced vacuum planetary centrifugal mixer supports continuous revolution-rotation ratio adjustment, offering flexible mixing settings to process hard-to-uniform materials with reliable vacuum defoaming performance.
Product Parameters
Model |
TMV-2000TT |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
2000ml, 1000g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-2） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 200V, 50/60Hz, 2.8kW |
Overall Dimensions (mm) |
L730×W730×H910 |
Main Unit Weight |
215 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product advantages
Revolution-rotation ratio is continuously adjustable, suitable for diversified materials and hard-to-uniform mixing scenarios.
Professional vacuum negative pressure defoaming, realizes non-destructive bubble-free mixing for sensitive materials.
Non-contact blade-free design, avoids impurity mixing and eases container care.

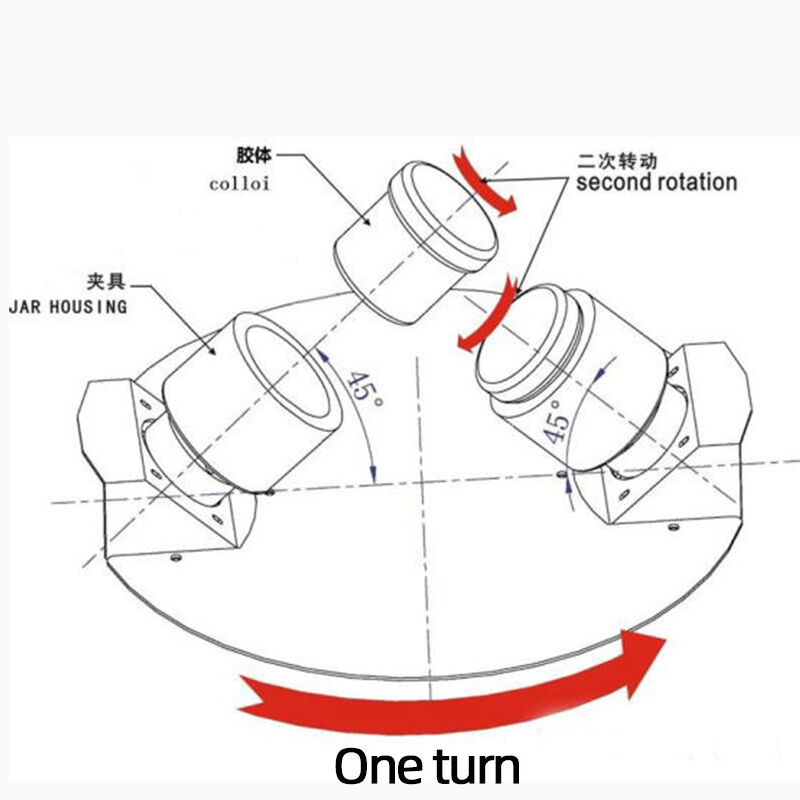

Dual planetary centrifugal rotary motion, achieves thorough blending without mixing dead zones.
Infinite parameter regulation, offers wide adaptability to high-viscosity raw materials.
Durable structure design, supports stable long-term operation.
Smooth running and straightforward control, convenient for daily use and maintenance.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: How does the adjustable revolution-rotation ratio work for this mixer?
A: The adjustable rotation ratio allows flexible adjustment of revolution speed and rotation speed to correspond with different material traits. It highly improves the device’s compatibility, achieving even homogenization for more material types and hard-to-blend materials that standard mixers cannot process satisfactorily.
Q: What is the main distinction between this upgraded model and common vacuum planetary centrifugal mixers?
A: Different from common vacuum mixers, this upgraded model integrates an adjustable revolution-rotation ratio function, providing more flexible parameter regulation. It is specially designed to optimize hard-to-uniform materials, while preserving the strengths of professional vacuum defoaming and blade-free mixing, with more extensive application fields.
Q: What kinds of materials and scenarios apply to this upgraded vacuum mixer?
A: It adapts to assorted ordinary materials and a broad range of hard-to-mix materials, including high-viscosity slurries, composite materials, ceramic pastes, electronic slurry and resin materials. It spans laboratory R&D, small-batch verification to 2kg large-capacity industrial mass production.
