SMIDA CH-1500 1500W Handheld Fiber Laser Welding Machine for Metal Fabrication
SMIDA CH-1500 1500W handheld fiber laser welding machine (1064nm) offers 3-5x faster welding speed. With 10-15m optical fiber and portable design, it supports multi-angle operation, water cooling, and eco-friendly performance—ideal for metal processing in automotive, aerospace, hardware industries.
- Overview
- Recommended Products
SMIDA CH-1500 1500W handheld fiber laser welding machine (1064nm) offers 3-5x faster welding speed. With 10-15m optical fiber and portable design, it supports multi-angle operation, water cooling, and eco-friendly performance—ideal for metal processing in automotive, aerospace, hardware industries.
Product Parameters
Model Number |
CH-1500 |
Equipment Name |
Handheld Laser Welding Machine |
Laser Type |
Fiber Laser |
Laser Power |
1500W |
Wavelength |
1064nm |
Cooling Method |
Water Cooling |
Welding System |
SMIDA |
Rated Power Supply Voltage |
220V/50Hz |
Air Supply |
0.5-0.6Mpa |
Overall Dimensions (L×W×H) |
525×950×650 mm |
Operating Environment |
Temperature: 15℃-35℃; Humidity ≤60% |
Weight |
80KG |
Total Power |
3.0KW |
Product Advantages
High Efficiency & Flexibility: Welding speed is 3-5 times that of traditional welding; 10-15m long optical fiber enables unrestricted operation at various angles and positions, breaking space limitations.
Eco-Friendly & Energy-Saving: No open flame, no noise, no pollution; no consumables required (welding wire is optional), reducing environmental impact and operating costs.

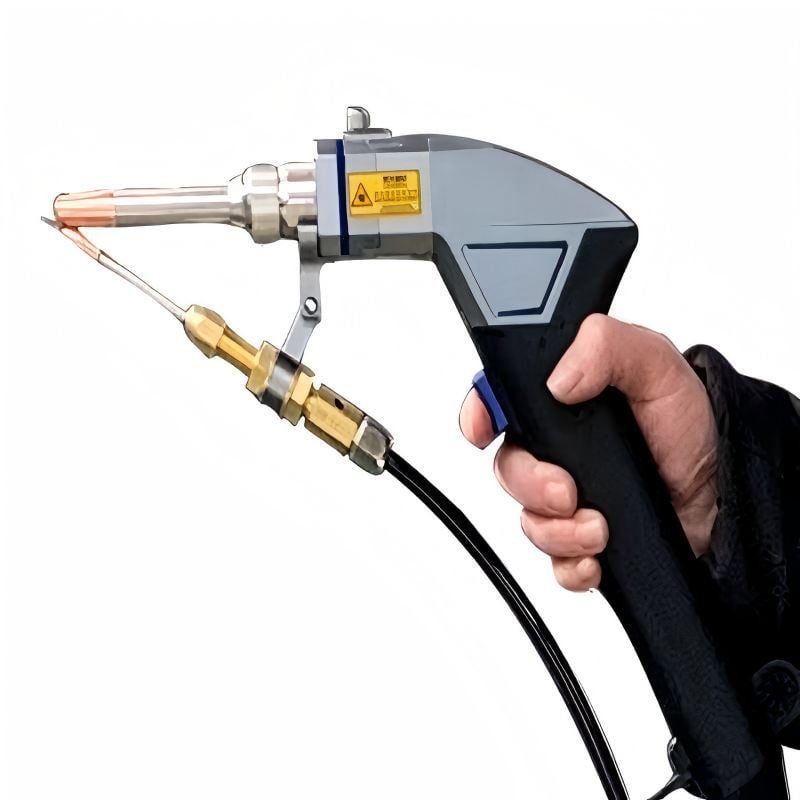

Portable & Versatile: Handheld operation design adapts to outdoor or complex on-site work scenarios, suitable for both small precision parts and large metal structures.
Cost-Effective Long-Term: Though the initial investment is higher, it significantly reduces labor costs and improves production efficiency, making it a perfect equipment upgrade for small and medium-sized manufacturing enterprises.
Product Application
Manufacturing Segments
Automotive Manufacturing: Body welding, engine components, fuel tanks, water tanks, and other precision parts welding.
Aerospace: High-precision welding for aircraft fuselage, landing gear, and other critical components.
Shipbuilding: Welding of hulls, decks, and large metal structures.
Electronic Manufacturing: Precision welding of electronic components, batteries, and small parts.
Civil & Industrial Scenarios
Daily metal processing such as kitchenware, door/window manufacturing, hardware products, and sheet metal fabrication.
FAQ

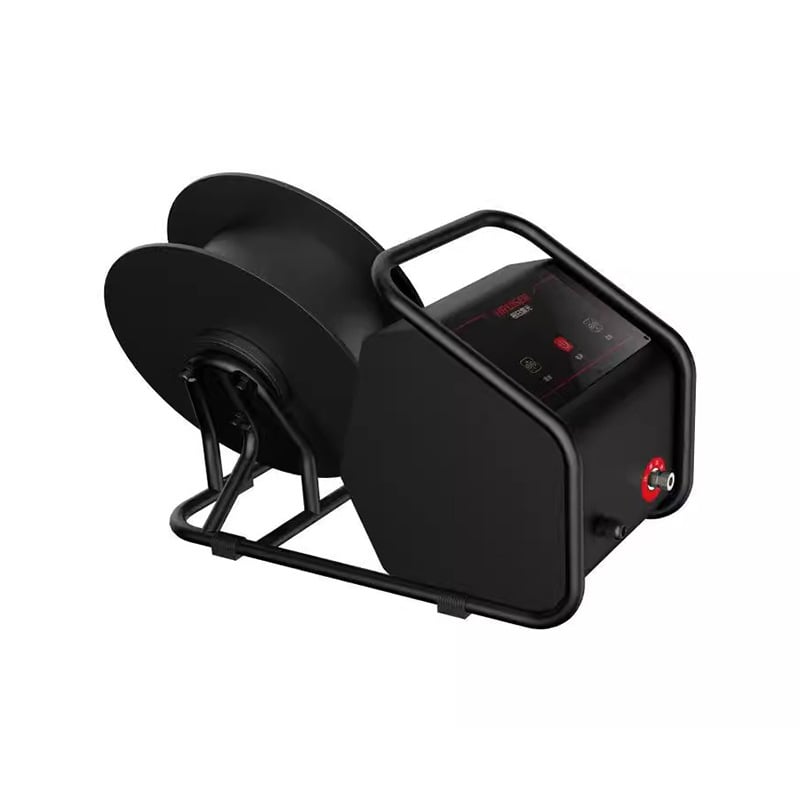

Q: Does SMIDA CH-1500 need welding wire, and what types are optional?
A: Yes. Optional types include stainless steel, carbon steel, aluminum alloy wires (matched with welded metals).
Q: What are the CH-1500's operating environment and supporting requirements?
A: Temp 15℃-35℃, humidity ≤60%; 220V/50Hz power, 0.5-0.6Mpa air source, water cooling.
Q: Does the CH-1500’s 3-5x faster speed affect welding quality?
A: No. 1500W fiber laser + SMIDA welding system ensures precise seams and stable strength.
