700g Compact Vacuum Planetary Centrifugal Mixer for Small Batch Material Mixing TMV-700TT
The 700g enhanced vacuum planetary centrifugal mixer features adjustable revolution and rotation proportion, enabling flexible parameter setup to handle diverse difficult-to-mix materials with stable vacuum defoaming.
- Overview
- Recommended Products
The 700g enhanced vacuum planetary centrifugal mixer features adjustable revolution and rotation proportion, enabling flexible parameter setup to handle diverse difficult-to-mix materials with stable vacuum defoaming.
Product Parameters
Model |
TMV-700TT |
Product Name |
Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
700ml, 350g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio（0-2） |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Power Supply |
AC 200V, 50/60Hz, 2.3kW |
Overall Dimensions (mm) |
L650×W650×H820 |
Main Unit Weight |
180 kg |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product advantages
The revolution and rotation proportion can be adjusted freely, suitable for more materials and various hard-to-blend raw materials.
Built-in vacuum defoaming system, eliminates internal bubbles and improves material compactness and uniformity.
Blade-less design, prevents material cross-pollution and simplifies vessel maintenance.

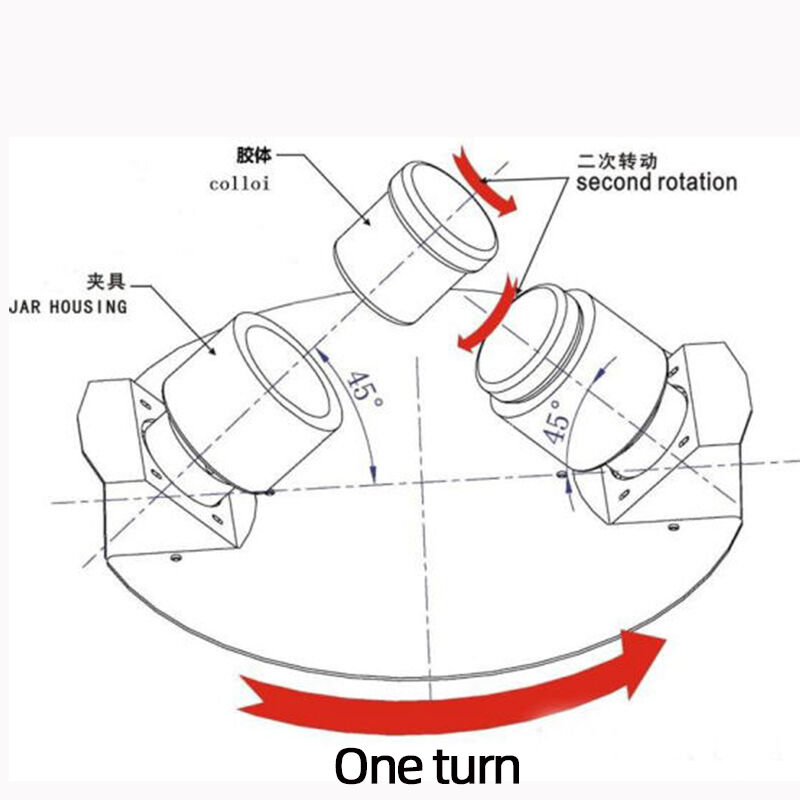

Dual planetary centrifugal movement, delivers high-efficiency homogenization with no dead zones.
Infinitely variable parameter settings, adapts to the viscosity and traits of different materials.
Robust construction, guarantees stable running and long service life.
Quiet operation and intuitive control, effortless to use and daily upkeep.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What role does the adjustable revolution-rotation ratio play on this mixer?
A: With an adjustable rotation ratio, you can flexibly set the revolution speed and rotation speed to match different material properties. It greatly enhances the device’s adaptability, achieving even mixing for more material types and difficult-to-blend materials that regular mixers cannot handle effectively.
Q: How is this upgraded model different from standard vacuum planetary centrifugal mixers?
A: In contrast with ordinary vacuum mixers, this upgraded edition is equipped with an adjustable revolution-rotation ratio function, offering more flexible parameter control. It is targeted at optimizing hard-to-uniform materials, while maintaining the advantages of professional vacuum defoaming and blade-free mixing, and expanding applicable scenarios.
Q: Which materials and scenarios fit this upgraded vacuum mixer?
A: It is applicable for various regular materials and numerous hard-to-mix uniform materials, such as high-viscosity slurries, composites, ceramic pastes, electronic slurry and resin materials. It ranges from laboratory research and development, small-batch trials to large-scale industrial manufacturing with a maximum capacity of 700g.
