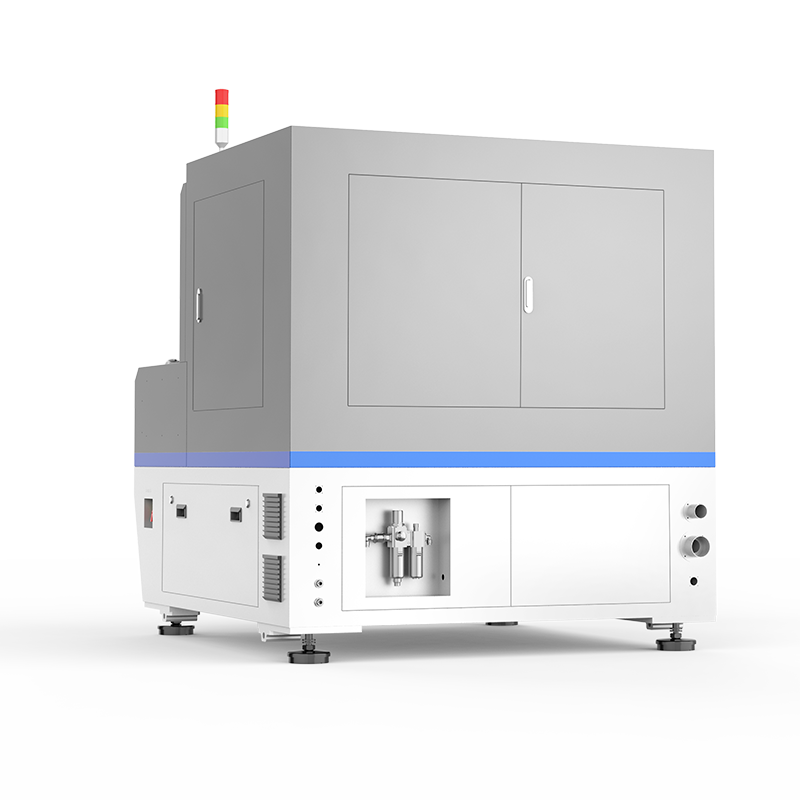

Automatic inline Fiber Laser Cutting Machine for PCB Metal Substrates & Sheet Metals CT-MiniC1
This automatic inline fiber laser cutting machine is specially designed for online assembly lines, realizing non-contact high-precision cutting for aluminum substrates, copper substrates, aluminum alloy, stainless steel, carbon steel, alloy steel and silicon steel. It features continuous operation, automatic feeding and discharging, smooth cutting without burrs, perfectly matching industrial mass production and PCB laser depaneling requirements.
- Overview
- Recommended Products
This automatic inline fiber laser cutting machine is specially designed for online assembly lines, realizing non-contact high-precision cutting for aluminum substrates, copper substrates, aluminum alloy, stainless steel, carbon steel, alloy steel and silicon steel. It features continuous operation, automatic feeding and discharging, smooth cutting without burrs, perfectly matching industrial mass production and PCB laser depaneling requirements.
Product Parameters
Model |
CT-MiniC1 |
Product Name |
In-line Fiber Laser Cutting Machine |
Laser Type |
Fiber Laser |
Laser Power |
≥2000W (Optional) |
Flat Processing Area |
1200×550mm |
Max. Processable Material Thickness |
≤2mm |
In-line Operation Mode |
Two-stage Rail Conveying, Auto Width Adjustment |
Laser Cooling Method |
Water Cooling |
Platform Structure |
Marble + Linear Motor |
Cutting Head |
2D/3D Cutting Head Optional |
Positioning Accuracy |
±3μm |
Repeat Positioning Accuracy |
±1.5μm |
Cutting Product Accuracy |
±0.05mm |
X/Y Resolution |
0.2μm |
Max. X/Y Axis Speed |
1000mm/s |
Max. X/Y Acceleration |
1.5G |
Air Source (Dry Filtered Air) |
0.5–0.6MPa |
High-Pressure Air Source (Dry Filtered Air) |
1.2–1.5MPa |
In-line Working Height |
900±30mm |
CCD Resolution |
5 Megapixels |
Industrial Dust Collection System |
Standard |
Cutting System |
SMIDA |
File Format |
DXF Format |
Operating Environment |
Temperature: 25℃±2℃, Humidity: ≤60%RH |
MES System Connection |
Reserved Interface, Customizable Data Collection (Optional) |
Barcode Scanning |
Optional |
Main Unit Power Supply |
AC 220V, 50Hz |
Dust Collection System Power Supply |
AC 380V, 50Hz |
Main Unit Power |
7kW |
Dust Collection System Power |
3kW |
Main Unit Dimensions |
L2435×W1560×H1865mm |
Dust Collection System Dimensions |
L950×W950×H1760mm |
Main Unit Weight |
2700kg |
Dust Collection System Weight |
370kg |
Product advantages
• Professional inline automatic design, compatible with continuous production lines, realizing unmanned continuous processing.
• High-performance fiber laser source, providing high-precision cutting with small heat-affected zone and no material deformation.
• Wide material adaptability, covering PCB aluminum/copper substrates and various metal sheets for diversified cutting needs.
• Non-contact laser cutting, no mechanical stress, no burrs and high material utilization rate.
• Automatic feeding and unloading system, reducing manual operation and greatly improving production efficiency.
• Stable optical structure and electrical system, low failure rate, suitable for long-term heavy-load production.
• Intelligent control system, easy parameter setting, with fault alarm and production monitoring functions.

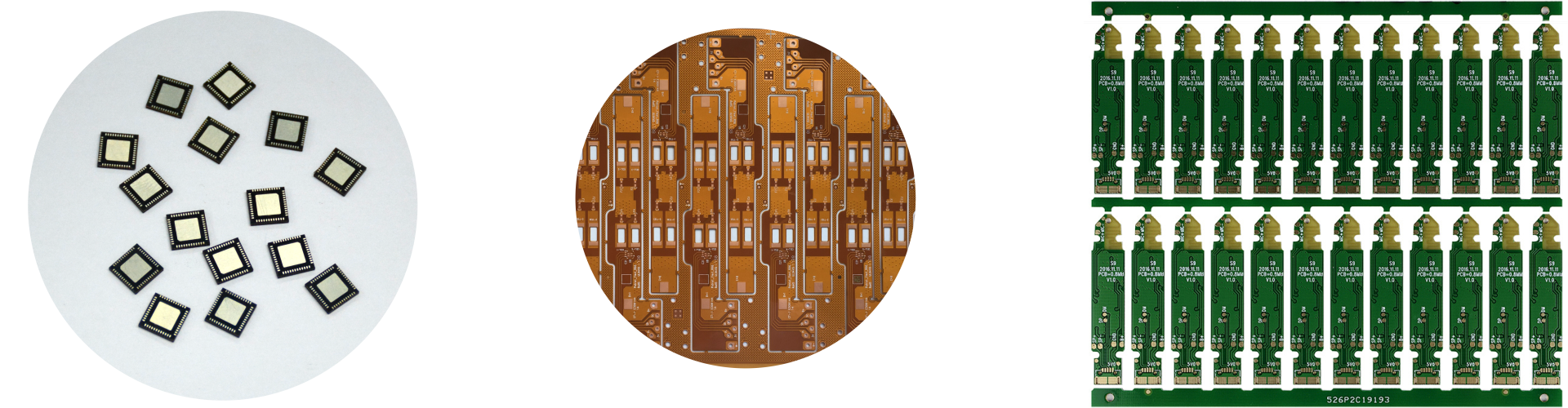

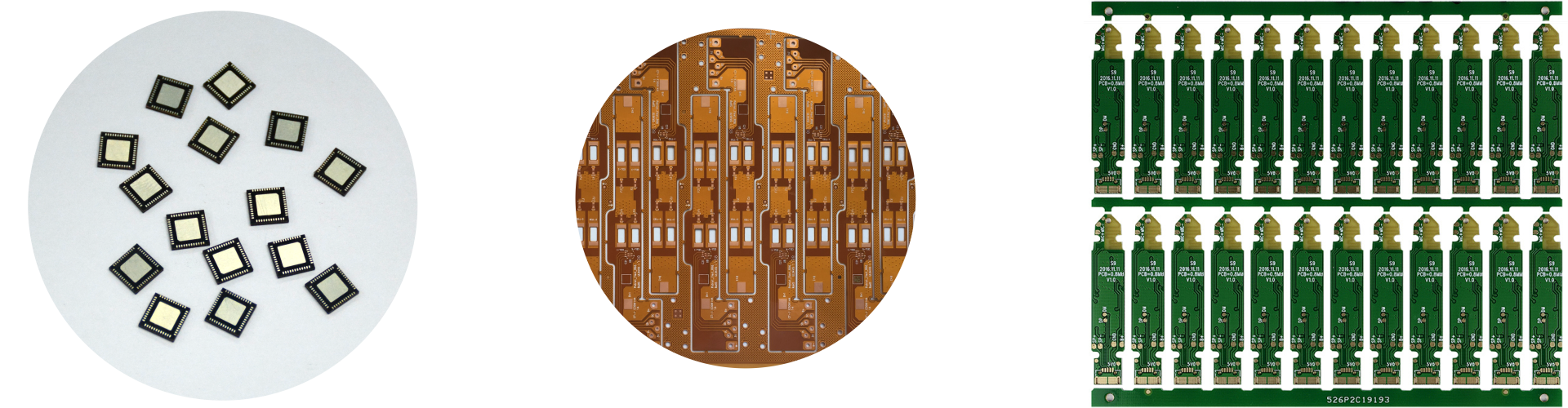

Product Application
Aluminum Substrate, Copper Substrate, Aluminum Alloy, Stainless Steel, Carbon Steel, Alloy Steel, Silicon Steel
FAQ
Q: How about the cutting accuracy and edge quality for thin PCB substrates and metal sheets?
A: Equipped with high-precision fiber laser, it realizes non-contact cutting with high dimensional accuracy and smooth, burr-free edges. No deformation, chipping or scorching will occur, meeting the precision demands of PCB depaneling and metal cutting.
Q: Can this machine stably cut various metals including reflective aluminum and copper materials?
A:Yes. Optimized for multiple metal processing, it works steadily on aluminum substrates, copper substrates, aluminum alloy, stainless steel, carbon steel, alloy steel and silicon steel. It overcomes the cutting difficulty of reflective metals with stable effects.
Q: What about the maintenance cost and service life of this laser cutter?
A: The fiber laser source has a long service life and low failure rate. Without consumable blades or tools, it has almost no daily consumable cost. Only routine maintenance is needed, supporting long-term industrial operation.
