700g Temperature-Controlled Vacuum Planetary Centrifugal Mixer with Precision Regulation TMV-700TTC
Featuring intelligent water-cooling cooling technology, this mixer provides stable and accurate temperature regulation, perfect for high-viscosity and heat-sensitive material vacuum mixing.
- Overview
- Recommended Products
Featuring intelligent water-cooling cooling technology, this mixer provides stable and accurate temperature regulation, perfect for high-viscosity and heat-sensitive material vacuum mixing.
Product Parameters
Model |
TMV-700TTC |
Product Name |
Temperature-Controlled Vacuum Planetary Centrifugal Mixer |
Operation Mode |
Rotation, Revolution, Non-Contact, Vacuum, Temperature Control |
Continuous Operation Time |
30 mins |
Max. Mixing Capacity |
700ml, 350g×2 (Material Density: 1.0) |
Revolution Speed |
200–2500 rpm |
Rotation Speed |
Adjustable Revolution-to-Rotation Speed Ratio (0–2) |
Stored Programs |
20 Sets |
Mixing Programs |
5 Stages |
Vacuum Measurement Method |
High-Precision Vacuum Sensor |
Vacuum Pump Capacity |
21 m³/h |
Vacuum Degree |
0.2 ± 0.5 kPa |
Temperature Control Capacity |
Adjustable Water Temperature: 10℃ to 25℃(Optional -15 ℃ -25 ℃) |
Power Supply |
Main Unit: AC 220V, 50/60Hz, 2.3kW |
Water Chiller: AC 220V, 50/60Hz, 0.75kW(2kW) | |
Overall Dimensions (mm) |
Main Unit: L650×W650×H820 |
Water Chiller: L280×W560×H460（L600×W600×H1000） | |
Main Unit Weight |
Main Unit: 220 kg |
Water Chiller: 30 kg（115kg） | |
Operating Environment |
10–35℃, 35–80% RH |
Safety Functions |
Vacuum Sensor, Emergency Stop Switch, Door Lock Sensor |
Product Advantages
Smart water-cooled thermostatic system, precise and stable temperature regulation.
Built-in vacuum defoaming, achieving zero-bubble and high-consistency blending.
Blade-less design, avoiding material pollution and simplifying vessel cleaning.

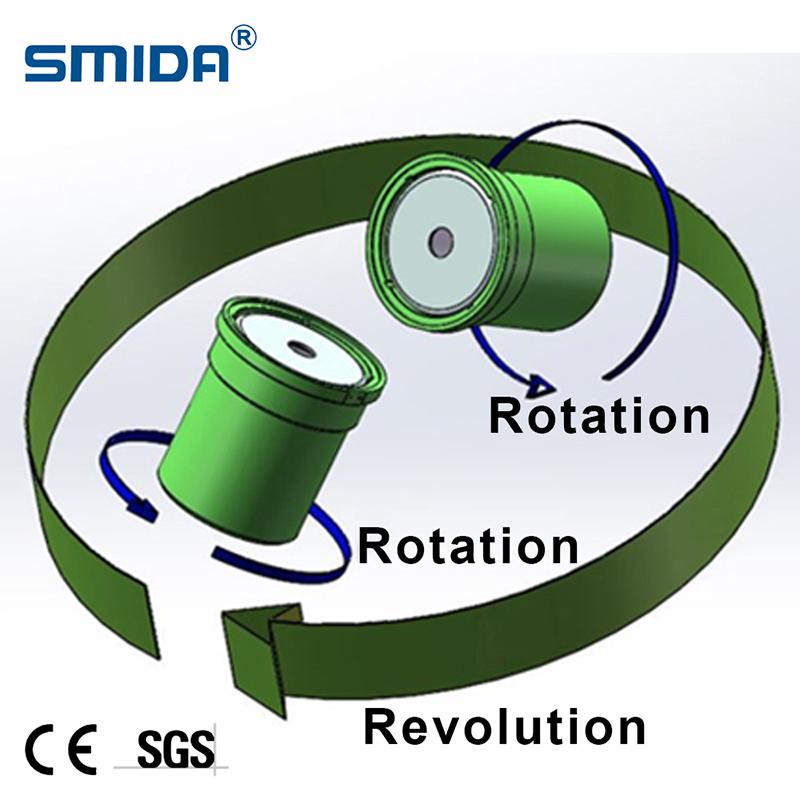

Dual planetary centrifugal movement, efficient mixing with no dead zones.
Infinitely variable parameter settings, adapting to thermal-sensitive viscous materials.
Diverse capacity selections, fitting laboratory research and industrial batch production.
Reliable and robust construction, enabling long-hour continuous working.
Quiet running and user-friendly control, effortless to operate and upkeep.
Product Application
LED Packaging/Display|Adhesives|Silicone Rubbe|Cathode and Anode Materials for Lithium Batteries|Polymer Materials|Silver Paste|Epoxy Resin|Pharmaceuticals|Ink|Conductive Adhesive|LCD|Laboratory
FAQ
Q: What range of material volume can this equipment process?
A: The maximum processing capacity of this model is 700g; a specialized adapter fixture is required to accommodate small containers.
Q: Are agitator blades installed on this planetary centrifugal mixer?
A: No, agitator blades are not included. SMIDA designs all mixers with a dual planetary motion system, supporting concurrent mixing for two material vessels at the same time.
Q: Is there a risk of overmixing materials with the SMIDA planetary centrifugal mixer?
A: There is no overmixing risk. The machine supports stepless regulation of all operating parameters, so you can set matched mixing plans based on different material traits.
